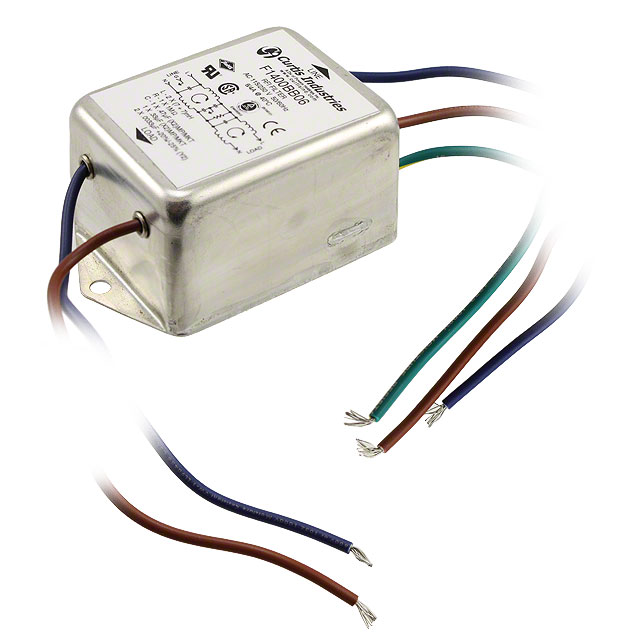

F1400BB06
ActiveCurtis Industries
LINE FILTER 250VAC 6A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F1400BB06
ActiveCurtis Industries
LINE FILTER 250VAC 6A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | F1400BB06 | F1400B Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Approval Agency | TUV, CSA, UR, CE | TUV, CSA, UR, CE |
| Configuration | Two Stage | Two Stage |
| Current | 6 A | 3 - 10 A |
| Filter Type | Single Phase | Single Phase |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Mounting Type | Chassis Mount | Chassis Mount |
| Termination Style | Wire Leads | Wire Leads |
| Voltage - Rated AC | 250 V | 250 V |
F1400B Series
LINE FILTER 250VAC 3A CHASS MNT
| Part | Filter Type | Voltage - Rated AC | Termination Style | Applications | Current | Frequency - Operating [Max] | Frequency - Operating [Min] | Approval Agency | Configuration | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries F1400BB03 | Single Phase | 250 V | Wire Leads | General Purpose | 3 A | 60 Hz | 50 Hz | CE, CSA, TUV, UR | Two Stage | Chassis Mount |
Curtis Industries F1400BB06 | Single Phase | 250 V | Wire Leads | General Purpose | 6 A | 60 Hz | 50 Hz | CE, CSA, TUV, UR | Two Stage | Chassis Mount |
Curtis Industries F1400BB10 | Single Phase | 250 V | Wire Leads | General Purpose | 10 A | 60 Hz | 50 Hz | CE, CSA, TUV, UR | Two Stage | Chassis Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 46.18 | |
| 10 | $ 44.64 | |||
| 30 | $ 43.10 | |||
| 50 | $ 41.56 | |||
| 100 | $ 38.10 | |||
Description
General part information
F1400B Series
Single Phase EMC/EMI Line Filter 6 A 250V 50/60Hz Two Stage Wire Leads
