7291-7PG-3ES

Active

Conxall/Switchcraft

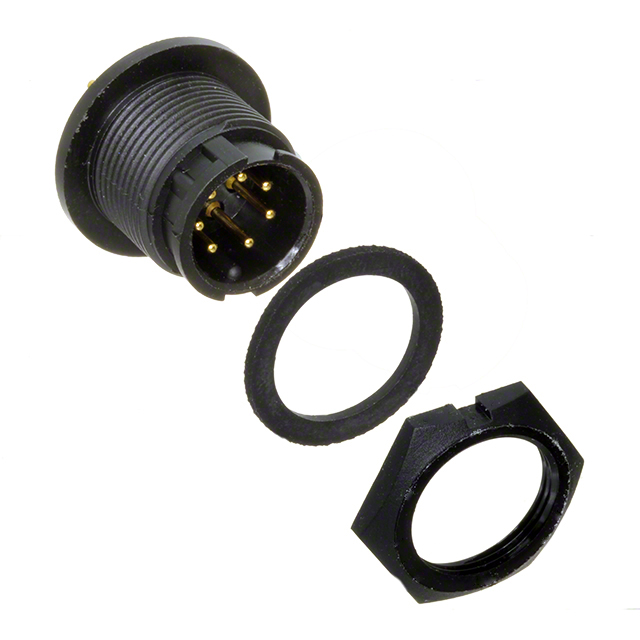

CONN RCPT MALE 7POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 7POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	7291-7PG-3ES

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	7
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Solder
Voltage Rating	600 V

CONN RCPT MALE 7POS GOLD SOLDER

Part	Mounting Type	Contact Material	Orientation	Voltage Rating	Ingress Protection	Contact Finish - Mating	Mounting Feature	Primary Material	Backshell Material, Plating	Color	Shielding	Fastening Type	Connector Type	Current Rating (Amps)	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Number of Positions
Conxall/Switchcraft 7291-7PG-3ES	Panel Mount, Through Hole	Brass	Keyed	600 V	Weathertight	Gold	Bulkhead - Front Side Nut	Plastic	Nylon, Polyamide (PA)	Black	Unshielded	Bayonet Lock	Male Pins, Receptacle	Varies by Wire Gauge	Solder	-40 °C	115 °C	Automotive, Communication Systems, Instrumentation	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder
