Description
General part information

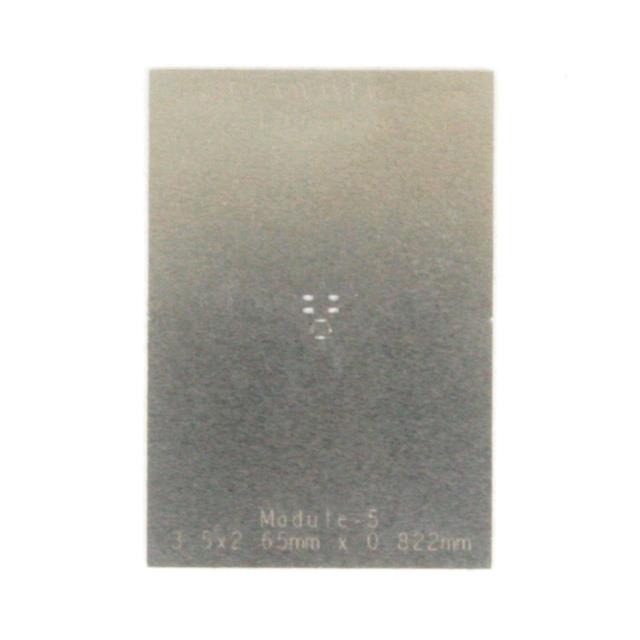

IPC0246-S
MODULE-5 (0.822 MM PITCH, 3.5 X
Technical Specifications
Parameters and characteristics for this part
| Specification | IPC0246-S |
|---|---|
| Inner Dimension Length | 0.138 in |
| Inner Dimension Width | 0.138 in |
| Material | Stainless Steel |
| Number of Positions | 5 |
| Outer Dimension Length | 1.3 in |
| Outer Dimension Width | 0.9 in |
| Pitch | 0.031 in |
| Thickness | 0.004 in |
| Type | Module |
