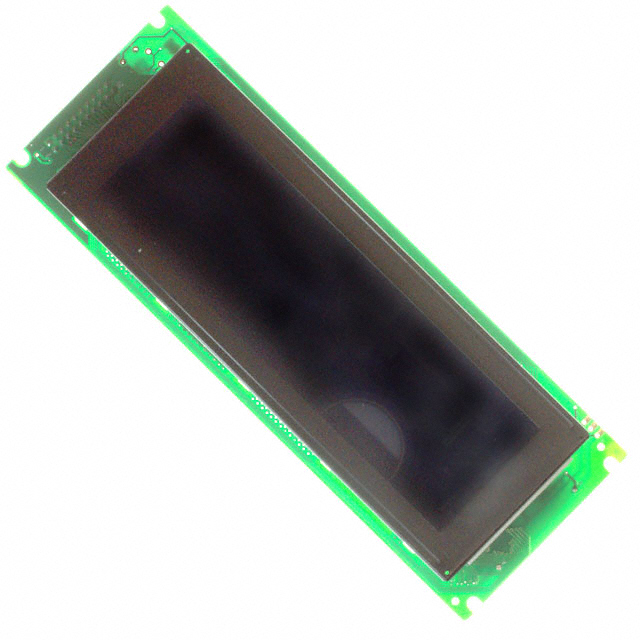

Specification	GLK24064-25-WB

Background Color	Blue
Backlight Color	White
Backlight Type	LED
Display Mode	Transmissive
Display Type	Monochrome
Dot Pitch Height	0.53 mm
Dot Pitch Width	0.53 mm
Dot Pixels (Horizontal)	240 pixels
Dot Pixels (Vertical)	64 pixels
Dot Size Height	0.49 mm
Dot Size Width	0.49 mm
Graphics Color	White
Interface	I2C, TTL, RS-232
Viewing Area Height	39.2 mm
Viewing Area Width	132.2 mm

GLK24064 Series

Part	Dot Pitch Height	Dot Pitch Width	Dot Size Width	Dot Size Height	Viewing Area Height	Viewing Area Width	Display Type	Interface	Graphics Color	Dot Pixels (Horizontal)	Dot Pixels (Vertical)	Background Color	Backlight Type	Backlight Color	Display Mode
Matrix Orbital GLK24064R-25-1U-422-TCI	0.39 mm	0.39 mm	0.36 mm	0.36 mm	24.93 mm	93.57 mm	TFT - Color	RS-422	Blue Green Red	240 pixels	64 pixels	Black
Matrix Orbital GLK24064R-25-1U-USB-FGW	0.39 mm	0.39 mm	0.36 mm	0.36 mm	28.4 mm	98 mm	Monochrome	USB	Black	240 pixels	64 pixels	White	LED	White	Transmissive
Matrix Orbital GLK24064R-25-1U-422-TCI-VPT-E	0.39 mm	0.39 mm	0.36 mm	0.36 mm	24.93 mm	93.57 mm	TFT - Color	RS-422	Blue Green Red	240 pixels	64 pixels	Black
Matrix Orbital GLK24064-25-WB-VPT-E	0.53 mm	0.53 mm	0.49 mm	0.49 mm	33.88 mm	127.16 mm	LCD - Monochrome	I2C RS-232	White	240 pixels	64 pixels	Blue
Matrix Orbital GLK24064-25-WB-E	0.53 mm	0.53 mm	0.49 mm	0.49 mm	39.2 mm	132.2 mm	Monochrome	I2C RS-232 TTL	White	240 pixels	64 pixels	Blue	LED	White	Transmissive
Matrix Orbital GLK24064R-25-1U-USB-WB-E	0.39 mm	0.39 mm	0.36 mm	0.36 mm	24.93 mm	93.57 mm	LCD - Monochrome	I2C RS-232 TTL	White	240 pixels	64 pixels	Blue	LED	White
Matrix Orbital GLK24064-25-USB-WB-E	0.53 mm	0.53 mm	0.49 mm	0.49 mm	33.88 mm	127.16 mm	LCD - Monochrome	USB	White	240 pixels	64 pixels	Blue
Matrix Orbital GLK24064-25-E	0.53 mm	0.53 mm	0.49 mm	0.49 mm	39.2 mm	132.2 mm	Monochrome	I2C RS-232 TTL	Black	240 pixels	64 pixels	Green	LED	Green Yellow	Transmissive
Matrix Orbital GLK24064R-25-1U-422-FGW-E	0.39 mm	0.39 mm	0.36 mm	0.36 mm	24.93 mm	93.57 mm	LCD - Monochrome	RS-422	Gray	240 pixels	64 pixels	White
Matrix Orbital GLK24064R-25-1U-WB-E	0.39 mm	0.39 mm	0.36 mm	0.36 mm	24.93 mm	93.57 mm	LCD - Monochrome	I2C RS-232 TTL	White	240 pixels	64 pixels	Blue	LED	White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

GLK24064-25-WB | Datasheet
