EPS300-3/8-48"-RED-125 PCS

Active

HEATSHRINK TUBING 3/8-48" 1=1PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

EPS300-3/8-48"-RED-125 PCS

Active

HEATSHRINK TUBING 3/8-48" 1=1PC

Deep-Dive with AI

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.62
		5	$ 10.16
		10	$ 7.85
		25	$ 7.16
		50	$ 6.69
		100	$ 6.23

Description

General part information

EPS-300 Series

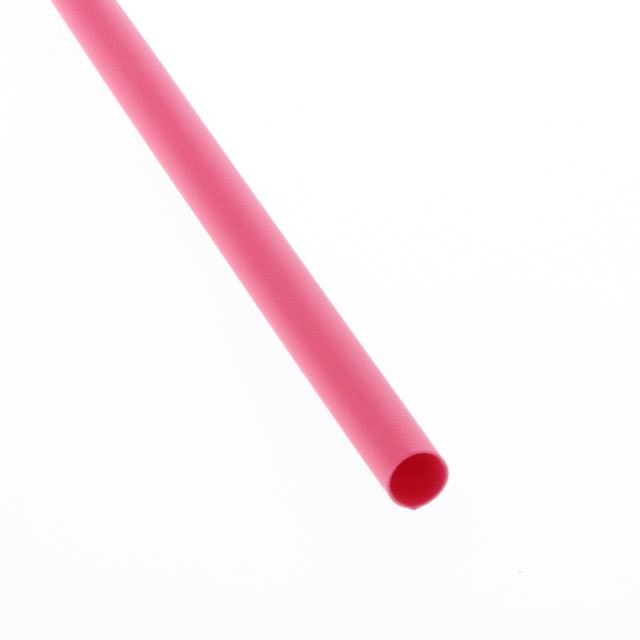

Heat Shrink Tubing, Flexible 0.375" (9.53mm) 3 to 1 Red 4.00' (1.22m)

Documents

Technical documentation and resources

Heat Shrink Tubing and Devices Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EPS300-3/8-48"-RED-125 PCS	EPS-300 Series

Color	Red	Black, Red, Clear
Features	Corrosion Resistant, Water Resistant, Self Extinguishing, Adhesive Lined, Fluid Resistant, Flame Retardant	Header Label, Adhesive Lined, Self Extinguishing, Corrosion Resistant, Fluid Resistant, Flame Retardant, Water Resistant
Inner Diameter - Recovered	-	0.51 in
Inner Diameter - Recovered	-	12.95 mm
Inner Diameter - Recovered [diameter]	0.12 in	0.04 - 0.32 in
Inner Diameter - Recovered [diameter]	3.05 mm	1.02 - 8.13 mm
Inner Diameter - Supplied [diameter]	0.375 in	0.125 - 1.5 "
Inner Diameter - Supplied [diameter]	9.53 mm	3.18 - 38.1 mm
Length	-	19.05 - 152.4 mm
Length	-	0.75 - 6 "
Length	-	0.5 '
Length	-	0.062 - 0.25 '
Length	-	4 "
Length [x]	1.22 m	1.22 - 609.6 m
Length [x]	4 ft	0.333 - 4 ft
Material	Polyolefin (PO), Irradiated	Polyolefin (PO), Irradiated
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.055 in	0.04 - 0.1 in
Recovered Wall Thickness	1.4 mm	1.02 - 2.54 mm
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	121 °C	121 °C
Shrinkage Ratio [Max]	3	3
Shrinkage Ratio [Min]	1	1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Flexible	Tubing, Flexible

EPS-300 Series

HEATSHRINK TUBING 1/8-48"

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Material	Color	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Shelf Life	Features	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Length [x]	Length [x]	Length	Length	Length	Length
3M EPS300-1/8-48"-BLACK-HDR-25 PCS	3.18 mm	0.125 "	Tubing, Flexible	Polyolefin (PO), Irradiated	Black	1	3	120 Months	Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Header Label, Self Extinguishing, Water Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	1.02 mm	0.04 in	1.02 mm	0.04 in	-55 °C	110 °C	121 °C	1.22 m	4 ft
3M EPS300-1/2-48"-BLACK-75 PCS	12.7 mm	0.5 in	Tubing, Flexible	Polyolefin (PO), Irradiated	Black	1	3	120 Months	Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Self Extinguishing, Water Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	4.06 mm	0.16 in	1.78 mm	0.07 "	-55 °C	110 °C	121 °C	1.22 m	4 ft
3M EPS-300-1/4-BLACK	6.35 mm	0.25 in	Tubing, Flexible	Polyolefin (PO), Irradiated	Black	1	3	120 Months	Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Self Extinguishing, Water Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	2.03 mm	0.08 in	1.02 mm	0.04 in	-55 °C	110 °C	121 °C	1.22 m	4 ft
3M EPS-300 1/2" BL48"BX	12.7 mm	0.5 in	Tubing, Flexible	Polyolefin (PO), Irradiated	Black	1	3	120 Months	Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Self Extinguishing, Water Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	4.06 mm	0.16 in	1.78 mm	0.07 "	-55 °C	110 °C	121 °C	1.22 m	4 ft	19.05 mm, 38.1 mm, 50.8 mm, 152.4 mm	0.75 ", 1.5 ", 2 ", 6 "	0.5 '	0.062 ', 0.125 ', 0.167 '
3M EPS-300-H-1-48-BK	25.4 mm	1 in	Tubing, Flexible	Polyolefin (PO), Irradiated	Black	1	3	120 Months	Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Header Label, Self Extinguishing, Water Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	8.13 mm	0.32 "	2.54 mm	0.1 in	-55 °C	110 °C	121 °C	1.22 m	4 ft
3M EPS-300 3/16"BL48"BX	4.75 mm	0.187 in	Tubing, Flexible	Polyolefin (PO), Irradiated	Black	1	3	120 Months	Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Self Extinguishing, Water Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	1.57 mm	0.062 in	1.02 mm	0.04 in	-55 °C	110 °C	121 °C			19.05 mm, 25.4 mm, 38.1 mm, 50.8 mm, 76.2 mm	0.75 ", 1 in, 1.5 ", 2 ", 3 "		0.062 ', 0.083 ft, 0.125 ', 0.167 ', 0.25 ft
3M EPS300-3/4-6"-BLACK-10-10 PC PKS			Tubing, Flexible	Polyolefin (PO), Irradiated	Black	1	3	120 Months	Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Self Extinguishing, Water Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	6.35 mm	0.25 in	2.16 mm	0.085 in	-55 °C	110 °C	121 °C			152.4 mm	6 "	0.5 '
3M EPS-300-1-48-BLACK-BULK	25.4 mm	1 in	Tubing, Flexible	Polyolefin (PO), Irradiated	Black	1	3	120 Months	Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Self Extinguishing, Water Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	8.13 mm	0.32 "	2.54 mm	0.1 in	-55 °C	110 °C	121 °C	1.22 m	4 ft
3M EPS300-1-48"-BLACK-5 PCS	25.4 mm	1 in	Tubing, Flexible	Polyolefin (PO), Irradiated	Black	1	3	120 Months	Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Self Extinguishing, Water Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	8.13 mm	0.32 "	2.54 mm	0.1 in	-55 °C	110 °C	121 °C	1.22 m	4 ft
3M EPS300-1-48"-BLACK-HDR-5 PCS	25.4 mm	1 in	Tubing, Flexible	Polyolefin (PO), Irradiated	Black	1	3	120 Months	Adhesive Lined, Corrosion Resistant, Flame Retardant, Fluid Resistant, Header Label, Self Extinguishing, Water Resistant	Date of Manufacture	27 °C, 80 °F	10 °C	8.13 mm	0.32 "	2.54 mm	0.1 in	-55 °C	110 °C	121 °C	1.22 m	4 ft
