A2GS-4801I
ActiveAllied Components International
2.5G DUAL PORT
A2GS-4801I
ActiveAllied Components International
2.5G DUAL PORT
Description
General part information
A2GS-4801I

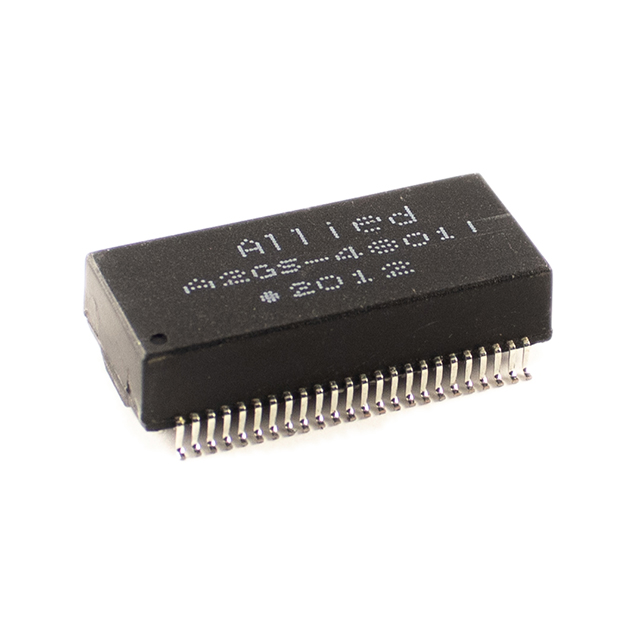

180µH LAN 2.5G Base-T Pulse Transformer 1CT:1CT Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | A2GS-4801I |
|---|---|
| Height - Seated (Max) | 0.283 in |
| Inductance | 180 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 1.094 in |
| Size / Dimension Width | 0.48 in |
| Transformer Type | LAN 2.5G Base-T |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
