EL7536IY
ObsoleteElantec
IC REG BUCK ADJ 1A 10MSOP
Deep-Dive with AI
Search across all available documentation for this part.
EL7536IY
ObsoleteElantec
IC REG BUCK ADJ 1A 10MSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EL7536IY |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching | 1.5 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

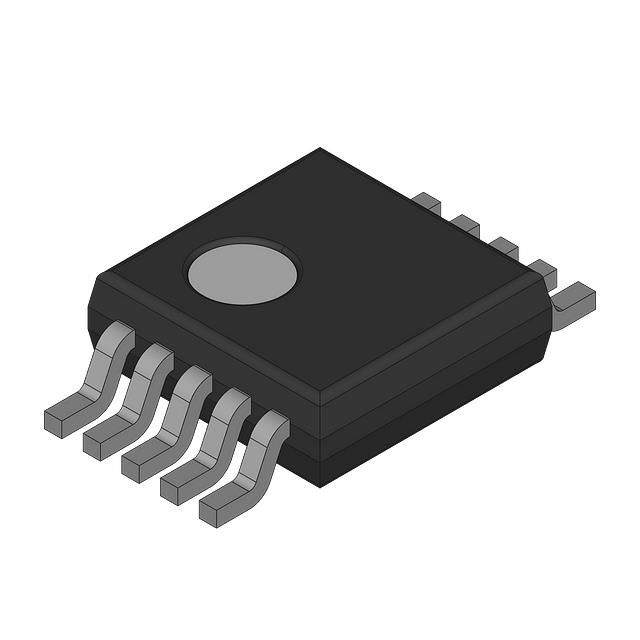

| Package / Case | 10-MSOP, 10-TFSOP |
| Package / Case [x] | 3 mm |
| Package / Case [x] | 0.118 in |
| Supplier Device Package | 10-MSOP |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.5 V |
| Voltage - Output (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 125 | $ 2.40 | |
Description
General part information
EL7536IY
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1A 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Documents
Technical documentation and resources
No documents available
