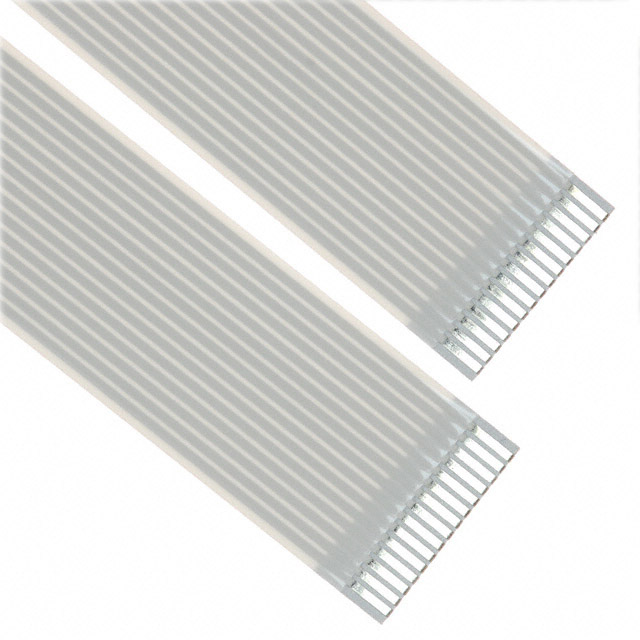

050R15-102B

Active

Parlex USA LLC

CABLE FFC/FPC 15POS 0.5MM 4"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 15POS 0.5MM 4"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	050R15-102B	050R15 Series

Cable Type	FPC, FFC	FPC, FFC
Length	4 in	2 - 5 in
Length	101.6 mm	50.8 - 127 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	15	15
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 15POS 0.5MM 5"

Part	Cable Type	Length	Length	Number of Conductors	Termination Style	Pitch [x]	Pitch [x]	Length - Exposed Ends [x]	Length - Exposed Ends [x]
Parlex USA LLC 050R15-127B	FFC, FPC	5 in	127 mm	15	Backers on Both Sides, Top on Both Sides	0.5 mm	0.02 in	0.14 in	3.56 mm
Parlex USA LLC 050R15-102B	FFC, FPC	4 in	101.6 mm	15	Backers on Both Sides, Top on Both Sides	0.5 mm	0.02 in	0.14 in	3.56 mm
Parlex USA LLC 050R15-51B	FFC, FPC	2 in	50.8 mm	15	Backers on Both Sides, Top on Both Sides	0.5 mm	0.02 in	0.14 in	3.56 mm
Parlex USA LLC 050R15-76B	FFC, FPC	3 in	76.2 mm	15	Backers on Both Sides, Top on Both Sides	0.5 mm	0.02 in	0.14 in	3.56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position FFC, FPC Cable 0.020" (0.50mm) 4.000" (101.60mm)
