1057908-1
ActiveTE Connectivity AMP Connectors
CONN ADAPT SMA JACK TO TNC JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1057908-1
ActiveTE Connectivity AMP Connectors
CONN ADAPT SMA JACK TO TNC JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1057908-1 |
|---|---|
| Adapter Series | OSM to OST |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | Female Socket, TNC Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mounting Feature | Bulkhead |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1057908 Series
CONN ADAPT SMA JACK TO TNC JACK
| Part | Center Contact Material | Adapter Series | Includes | Body Material | Center Contact Plating | Convert From (Adapter End) | Conversion Type | Center Gender | Convert To (Adapter End) | Adapter Type | Style | Mounting Feature | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1057908-1 | Beryllium Copper | OSM to OST | 1 Connector, 1 Lockwasher, 1 Nut | Stainless Steel | Gold | Female Socket, SMA Jack | Between Series | Female to Female | Female Socket, TNC Jack | Jack to Jack | Straight | Bulkhead | Polytetrafluoroethylene (PTFE) |
Description
General part information
1057908 Series

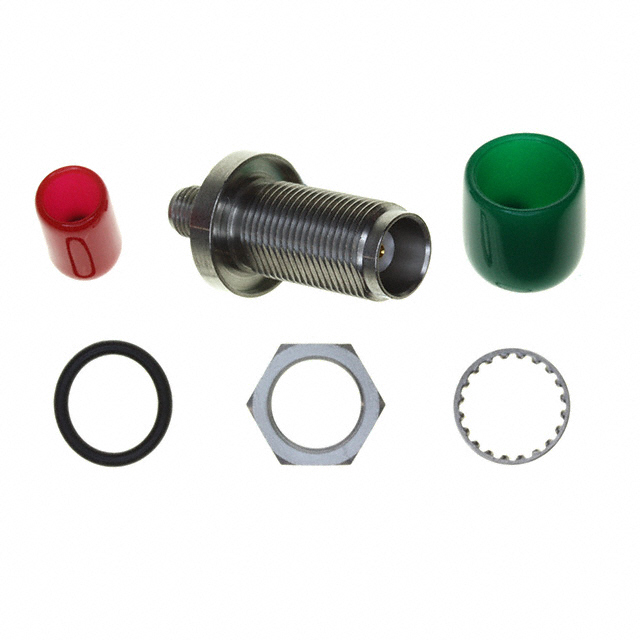

Adapter Coaxial Connector SMA Jack, Female Socket To TNC Jack, Female Socket
Documents
Technical documentation and resources
