PA4349.753ANLT
ActivePulse Electronics
INDUCTOR POWER MOLDED/SHIELDED WIREWOUND 75UH 20% 100KHZ 13A 0.0316OHM DCR T/R AUTOMOTIVE AEC-Q200
PA4349.753ANLT
ActivePulse Electronics
INDUCTOR POWER MOLDED/SHIELDED WIREWOUND 75UH 20% 100KHZ 13A 0.0316OHM DCR T/R AUTOMOTIVE AEC-Q200
Description
General part information

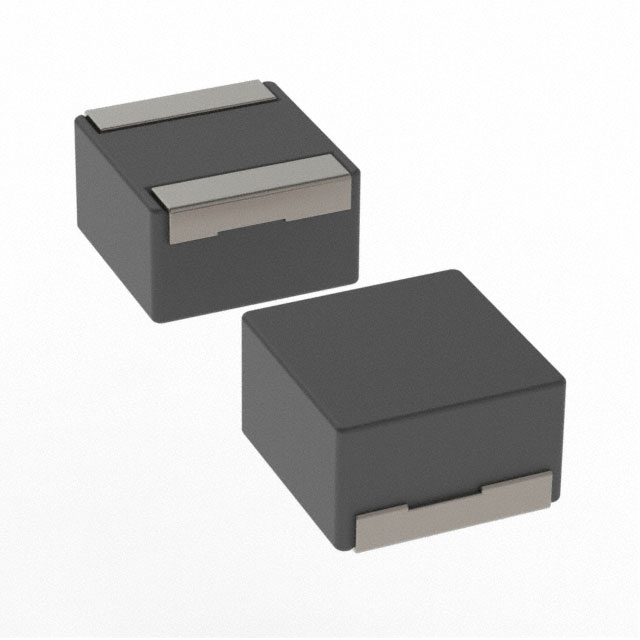

PA4349.753ANLT
75 µH Shielded Molded Inductor 11 A 31.6mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4349.753ANLT |
|---|---|
| Current - Saturation (Isat) | 8.5 A |
| Current Rating | 11 A |
| DC Resistance (DCR) (Max) | 31.6 mOhm |
| Frequency - Self Resonant | 2 MHz |
| Height - Seated (Max) | 0.512 in |
| Inductance | 75 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.925 in |
| Size / Dimension Width | 0.866 in |
| Tolerance | 20 % |
| Type | Molded |
