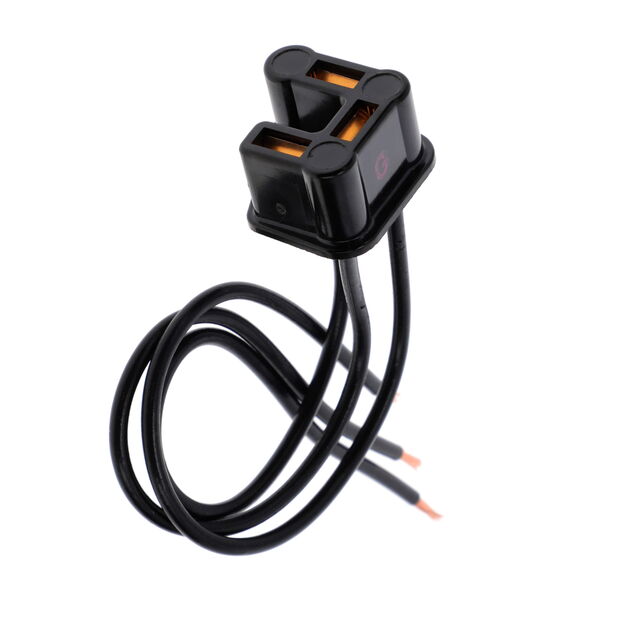

3029

Active

Littelfuse/Commercial Vehicle Products

SEAL BEAM CONN

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

SEAL BEAM CONN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Line

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	3029	- Series

Accessory Type	-	Face Plate, Terminal Coupling, LED or Lamps - Socket with Contacts, Protective Boot
Actuator Type	-	Standard Round
Applications	-	Industrial, Automotive
Backshell Material, Plating	-	Plastic, Aluminum
Circuit	-	SPDT
Color	-	Black, Silver
Connector Type	-	Female Sockets, Male Pins, Receptacle, Plug
Contact Finish - Mating	-	Nickel
Contact Material	-	Brass
Current Rating (Amps)	-	250 A
Fastening Type	-	Push-Pull, Bayonet Lock
Features	-	Cap (Cover), Backshell, Strain Relief
For Use With/Related Products	-	Disconnect Switch, Vehicle Connectors, BA15d Base Bulb
Illumination	-	Non-Illuminated
Ingress Protection	-	IP69K, IP67
Insert Material	-	Plastic
Mounting Feature	-	Flange
Mounting Type	-	Free Hanging (In-Line), Panel Mount
null		-
Number of Positions	-	7 - 13
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Orientation	-	N, Keyed
Primary Material	-	Plastic, Metal
Shell Material	-	Plastic, Aluminum
Shielding	-	Unshielded
Switch Function	-	Mom-Off-Mom, On-Mom
Termination	-	Solder Tabs, Screw
Termination Style	-	Connector, Quick Connect - 0.250" (6.3mm)
Voltage Rating	-	12 - 24 V
Voltage Rating - DC	-	24 V

7P 24V/S PLUG PLASTIC M'S

Part	Backshell Material, Plating	Primary Material	Voltage Rating	Fastening Type	Shell Material	Orientation	Color	Applications	Connector Type	Termination	Shielding	Insert Material	Number of Positions	Contact Material	Mounting Type	Features	Contact Finish - Mating
Littelfuse/Commercial Vehicle Products 00596299
Littelfuse/Commercial Vehicle Products 00431768
Littelfuse/Commercial Vehicle Products 00595765
Littelfuse/Commercial Vehicle Products 00403790	Plastic	Plastic	12 V	Push-Pull	Plastic	N	Black	Automotive, Industrial	Female Sockets, Male Pins, Receptacle	Solder Tabs	Unshielded	Plastic	7	Brass	Free Hanging (In-Line)	Backshell, Cap (Cover)
Littelfuse/Commercial Vehicle Products 00681490
Littelfuse/Commercial Vehicle Products 00555778
Littelfuse/Commercial Vehicle Products 00511390	Plastic	Plastic	12 V	Bayonet Lock	Plastic	Keyed	Black	Automotive, Industrial	Male Pins, Plug	Screw	Unshielded	Plastic	13	Brass	Free Hanging (In-Line)	Backshell, Strain Relief	Nickel
Littelfuse/Commercial Vehicle Products 00585760
Littelfuse/Commercial Vehicle Products 12500
Littelfuse/Commercial Vehicle Products 00421799	Plastic	Plastic	12 V	Push-Pull	Plastic	N	Black	Automotive, Industrial	Female Sockets, Male Pins, Receptacle	Screw	Unshielded	Plastic	7	Brass	Free Hanging (In-Line)	Backshell, Cap (Cover)
