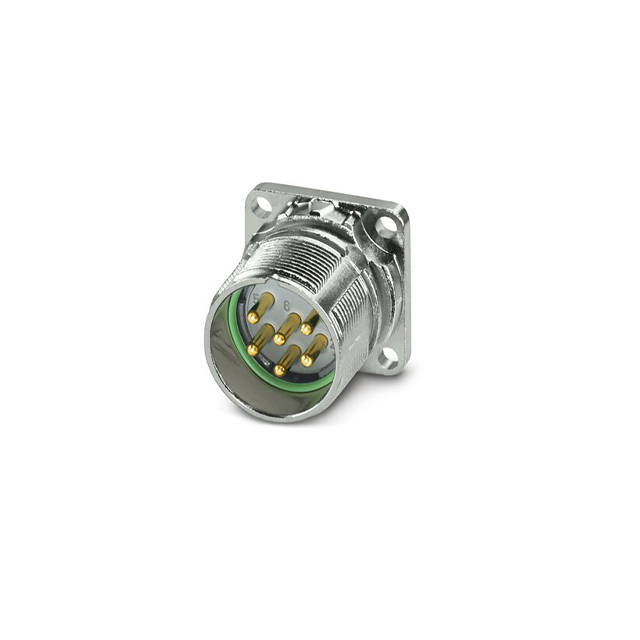

Specification	1339314

Color	Silver
Connector Type	Male Pins, Plug
Current Rating	20 A
Fastening Type	Threaded
Features	Backshell
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP69K, IP68, IP66
Insert Material	Polyamide, Nylon 6/6, PA66
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	6
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Material	Gadolinium-Zinc
Shell Size - Insert	M23-6
Shielding	Shielded
Termination	Solder
