3240162
ActivePhoenix Contact
CONN QC TAB 14-16AWG 0.250 CRIMP
3240162
ActivePhoenix Contact
CONN QC TAB 14-16AWG 0.250 CRIMP
Description
General part information
3240162

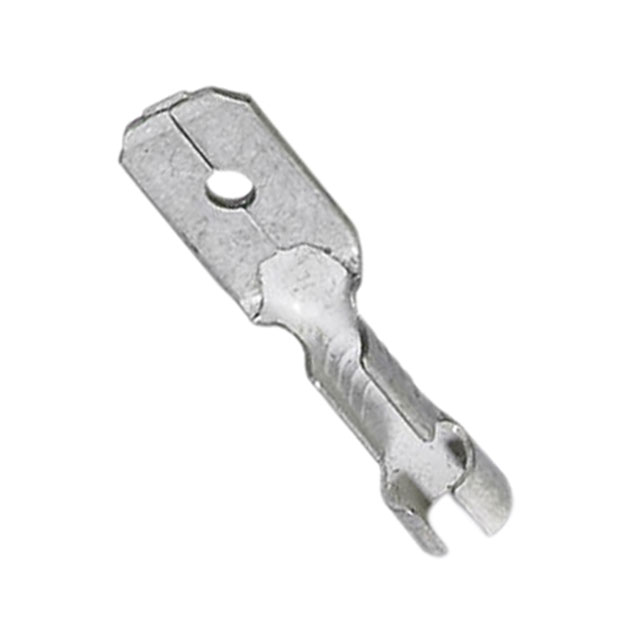

0.250" (6.35mm) Quick Connect Male 14-16 AWG Crimp Connector Non-Insulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 3240162 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Length - Overall | 0.787 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
