1421126

Active

Phoenix Contact

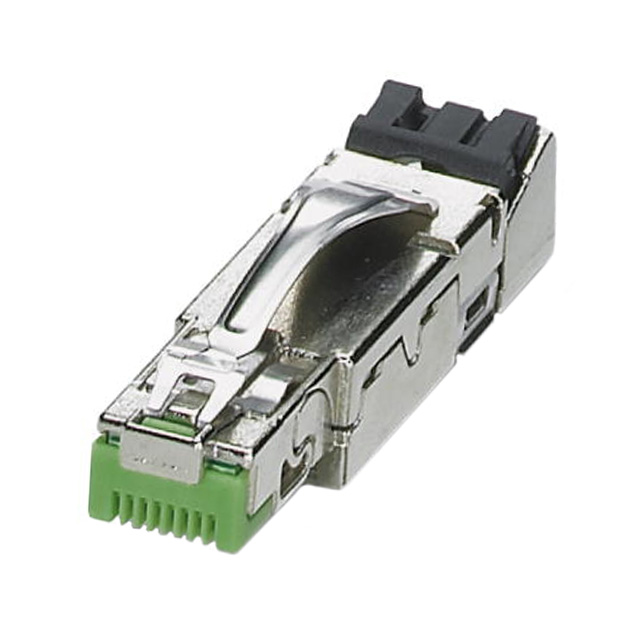

MODULAR CONNECTORS / ETHERNET CONNECTORS CUC-IND-C1ZNI-SR4IP8 AWG 23-22 PROFINET

Search across all available documentation for this part.

Active

Phoenix Contact

MODULAR CONNECTORS / ETHERNET CONNECTORS CUC-IND-C1ZNI-SR4IP8 AWG 23-22 PROFINET

Technical Specifications

Parameters and characteristics for this part

Specification	1421126

Cable Type	Round Cable, Solid, Stranded Wires
Connector Type	Plug
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	1.75 A
Features	Shock Resistant, Vibration Resistant
Housing Material	Zinc Die Cast
Length	53 mm
Length	0.17 ft
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat5
Shielding	Shielded
Termination	IDC
Voltage Rating	50 V
Wire Gauge [Max]	23 AWG
Wire Gauge [Min]	22 AWG

Modular Connectors / Ethernet Connectors CUC-IND-C1ZNI-SR4IP8 AWG 23-22 PROFINET

Part	Connector Type	Voltage Rating	Current Rating (Amps)	Number of Positions/Contacts	Contact Material	Features	Cable Type	Termination	Length	Length	Ratings	Shielding	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Housing Material
Phoenix Contact 1421126	Plug	50 V	1.75 A	8p8c (RJ45, Ethernet)	Copper Alloy	Shock Resistant, Vibration Resistant	Round Cable, Solid, Stranded Wires	IDC	53 mm	0.17 ft	Cat5	Shielded	Gold	22 AWG	23 AWG	Zinc Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Modular Connectors / Ethernet Connectors CUC-IND-C1ZNI-SR4IP8 AWG 23-22 PROFINET

Technical documentation and resources
