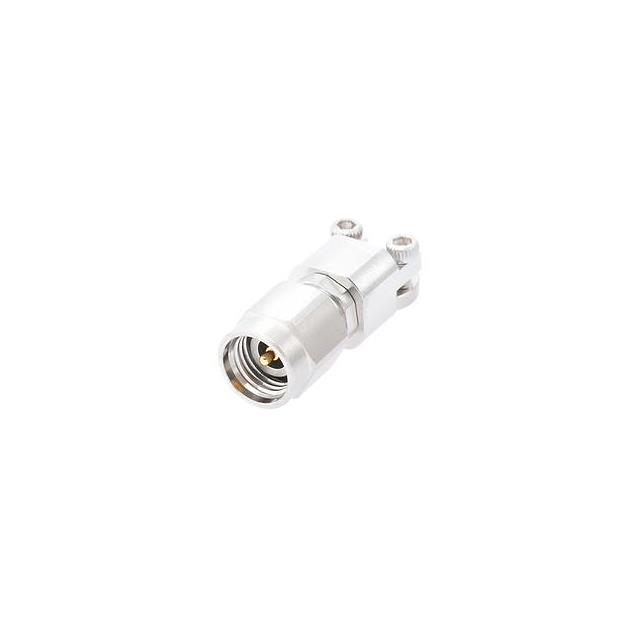

NE03MS001
ActiveWITHWAVE CO LTD
END LAUNCH 2.92 MM CONNECTOR (NA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NE03MS001
ActiveWITHWAVE CO LTD
END LAUNCH 2.92 MM CONNECTOR (NA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NE03MS001 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 2.92 mm |
| Connector Type | Male Pin, Plug |
| Contact Termination | Compression |
| Frequency - Max [Max] | 40 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Shield Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 62.70 | |
| 10 | $ 59.60 | |||
| 25 | $ 56.40 | |||
| 50 | $ 53.30 | |||
Description
General part information
NE03M Series
2.92mm Connector Plug, Male Pin 50 Ohms Board Edge, End Launch Compression
