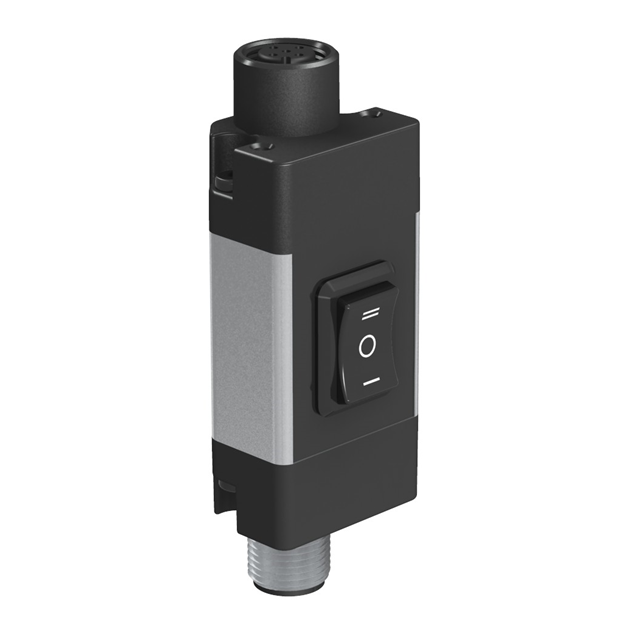

Specification	WLS28-2PBQ

Actuator Marking	I O II
Actuator Type	Concave (Curved)
Approval Agency	CE
Color - Actuator/Cap	Black
Current Rating	4 A
Electrical Life (Cycles)	10000 Cycles
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Mounting Type	Panel Mount, Flange
Switch Function	On-Off-On
Termination Style	Connector
Voltage Rating - DC	30 V

WLS28 Series

...

Part	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Profile Width	Profile Height	Rated Life	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Features	Approval Agency	Luminous Flux	Length	Housing Material	Illumination Color	Lens Type	Termination Style	Luminous Flux Colors	Luminous Flux (White)	Luminous Flux (Red)	Luminous Flux (Green)
BANNER ENGINEERING WLS28-2CW1130DXPBQ	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable High/Low/Off Switching	CE cULus	3200 lm	44.49 in	Al Aluminum	Cool White	Diffused Flat	Connector (M12)
BANNER ENGINEERING WLS28-2CW990XQ	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable	CE cULus	2800 lm	38.98 in	Al Aluminum	Cool White	Clear Flat	Connector (M12)
BANNER ENGINEERING WLS28-2CWW850DXQ	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable	CE cULus	2400 lm	33.46 in	Al Aluminum	Warm White	Diffused Flat	Connector (M12)
BANNER ENGINEERING WLS28-2XW990XQ	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable	CE cULus	2800 lm	38.98 in	Al Aluminum	Cool White	Clear Flat	Connector (M12)
BANNER ENGINEERING WLS28-2XW990SQ	-40 °C	70 °C	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable	CE cULus	2800 lm	38.98 in	Al Aluminum	Cool White	Clear Flat	Connector (M12)
BANNER ENGINEERING WLS28-2XW850XQ	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable Dimmable High/Low/Off Switching	CE cULus	2400 lm	33.46 in	Al Aluminum	Cool White	Clear Flat	Connector (M12)
BANNER ENGINEERING WLS28-2XWR-1130DXQ	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable	CE cULus		44.49 in	Al Aluminum	Red White	Diffused Flat	Connector (M12)	Red White	1425 lm	600 lm
BANNER ENGINEERING WLS28-2XW285XQ	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable Dimmable High/Low/Off Switching	CE cULus	800 lm	11.22 in	Al Aluminum	Cool White	Clear Flat	Connector (M12)
BANNER ENGINEERING WLS28-2XWGRXX3-0570X24Q	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable	CE cULus		22.44 "	Al Aluminum	Green Red White	Clear Flat	Connector (M12)	Green Red White	1300 lm	370 lm	800 lm
BANNER ENGINEERING WLS28-2XW850SQ	-40 °C	70 °C	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable	CE cULus	2400 lm	33.46 in	Al Aluminum	Cool White	Clear Flat	Connector (M12)
