325101-03-0
ActiveCurtis Industries

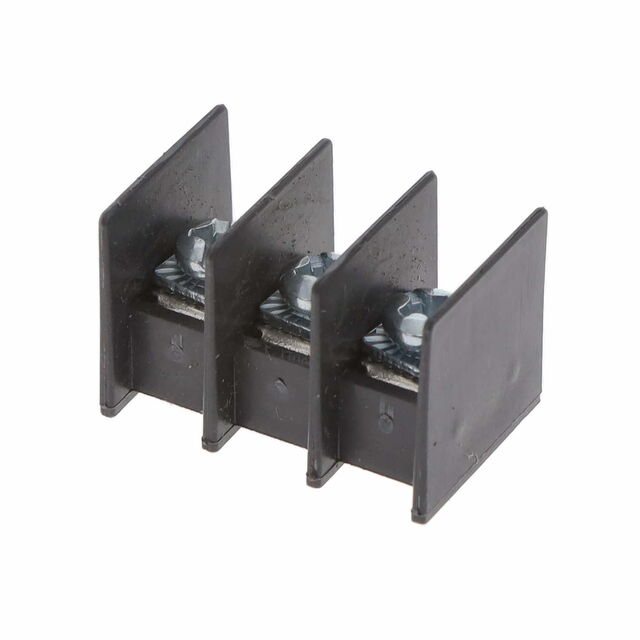

CONN BARRIER STRIP 3CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325101-03-0
ActiveCurtis Industries
CONN BARRIER STRIP 3CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325101-03-0 | 325101 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Closed | Closed |
| Current Rating (Amps) | 15 A | 15 A |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | 3 | 2 - 25 |
| Number of Circuits | - | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 3 | 2 - 25 |
| Number of Wire Entries | - | 22 - 23 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.86 | |
| 10 | $ 2.16 | |||
| 30 | $ 2.00 | |||
| 50 | $ 1.80 | |||
| 100 | $ 1.76 | |||
| 250 | $ 1.54 | |||
| 500 | $ 1.41 | |||
| 1000 | $ 1.27 | |||
| 5000 | $ 1.12 | |||
325101 Series
CONN BARRIER STRP 13CIRC 0.325"
| Part | Material Flammability Rating | Pitch [x] | Pitch [x] | Voltage Rating | Wire Gauge [Min] | Wire Gauge [Max] | Bottom Termination | Terminal Block Type | Mounting Type | Barrier Type | Material - Insulation | Top Termination | Number of Circuits | Current Rating (Amps) | Number of Rows | Number of Wire Entries | Operating Temperature | Number of Wire Entries [custom] | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325101-13-0 | UL94 V-0 | 8.26 mm | 0.325 in | 300 VDC | 14 AWG | 22 AWG | Closed | Barrier Block | Chassis, Panel | 2 Wall (Dual) | Polypropylene (PP) | Screws | 13 | 15 A | 1 | 13 | 105 C | ||
Curtis Industries 325101-22-0 | UL94 V-0 | 8.26 mm | 0.325 in | 300 VDC | 14 AWG | 22 AWG | Closed | Barrier Block | Chassis, Panel | 2 Wall (Dual) | Polypropylene (PP) | Screws | 22 | 15 A | 1 | 105 C | 22 | ||
Curtis Industries 325101-03-0 | UL94 V-0 | 8.26 mm | 0.325 in | 300 VDC | 14 AWG | 22 AWG | Closed | Barrier Block | Chassis, Panel | 2 Wall (Dual) | Polypropylene (PP) | Screws | 3 | 15 A | 1 | 3 | 105 C | ||
Curtis Industries 325101-20-0 | UL94 V-0 | 8.26 mm | 0.325 in | 300 VDC | 14 AWG | 22 AWG | Closed | Barrier Block | Chassis, Panel | 2 Wall (Dual) | Polypropylene (PP) | Screws | 20 | 15 A | 1 | 20 | 105 C | ||
Curtis Industries 325101-21-0 | UL94 V-0 | 8.26 mm | 0.325 in | 300 VDC | 14 AWG | 22 AWG | Closed | Barrier Block | Chassis, Panel | 2 Wall (Dual) | Polypropylene (PP) | Screws | 21 | 15 A | 1 | 21 | 105 C | ||
Curtis Industries 325101-25-0 | UL94 V-0 | 8.26 mm | 0.325 in | 300 VDC | 14 AWG | 22 AWG | Closed | Barrier Block | Chassis, Panel | 2 Wall (Dual) | Polypropylene (PP) | Screws | 25 | 15 A | 1 | 25 | 105 C | ||
Curtis Industries 325101-23-0 | UL94 V-0 | 8.26 mm | 0.325 in | 300 VDC | 14 AWG | 22 AWG | Closed | Barrier Block | Chassis, Panel | 2 Wall (Dual) | Polypropylene (PP) | Screws | 23 | 15 A | 1 | 105 C | 23 | ||
Curtis Industries 325101-06-0 | UL94 V-0 | 8.26 mm | 0.325 in | 300 VDC | 14 AWG | 22 AWG | Closed | Barrier Block | Chassis, Panel | 2 Wall (Dual) | Polypropylene (PP) | Screws | 6 | 15 A | 1 | 6 | 105 C | ||
Curtis Industries 325101-12-0 | UL94 V-0 | 8.26 mm | 0.325 in | 300 VDC | 14 AWG | 22 AWG | Closed | Barrier Block | Chassis, Panel | 2 Wall (Dual) | Polypropylene (PP) | Screws | 12 | 15 A | 1 | 12 | 105 C | ||
Curtis Industries 325101-02-0 | UL94 V-0 | 8.26 mm | 0.325 in | 300 VDC | 14 AWG | 22 AWG | Closed | Barrier Block | Chassis, Panel | 2 Wall (Dual) | Polypropylene (PP) | Screws | 2 | 15 A | 1 | 2 | 105 C |
Description
General part information
325101 Series
3 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
