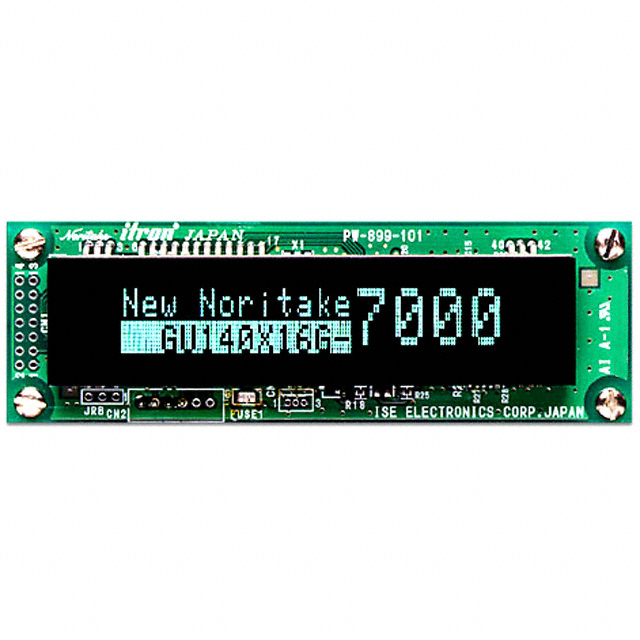

GU140X16G-7000
ObsoleteNoritake U.S.A., Inc.
MODULE VF GRAPHIC DISPLAY 140X16
GU140X16G-7000
ObsoleteNoritake U.S.A., Inc.
MODULE VF GRAPHIC DISPLAY 140X16
Description
General part information
GU140X16G-7000
Vacuum Fluorescent Display (VFD) 20 x 2 Graphic 5V Parallel/Serial 116.00mm x 37.00mm x 8.90mm
Technical Specifications
Parameters and characteristics for this part
| Specification | GU140X16G-7000 |
|---|---|
| Display Columns | 20 |
| Display Rows | 2 |
| Display Type | Graphic |
| Format Height (Dots) | 7 Dots |
| Format Width (Dots) | 5 Dots |
| Interface | Parallel/Serial |
| Number of Dots (Height) | 16 dots |
| Number of Dots (Width) | 140 dots |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Outline Height | 8.9 mm |
| Outline Length | 116 mm |
| Outline Width | 37 mm |
| Viewing Area Length | 69.9 mm |
| Viewing Area Width | 11.5 mm |
| Voltage - Supply | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
