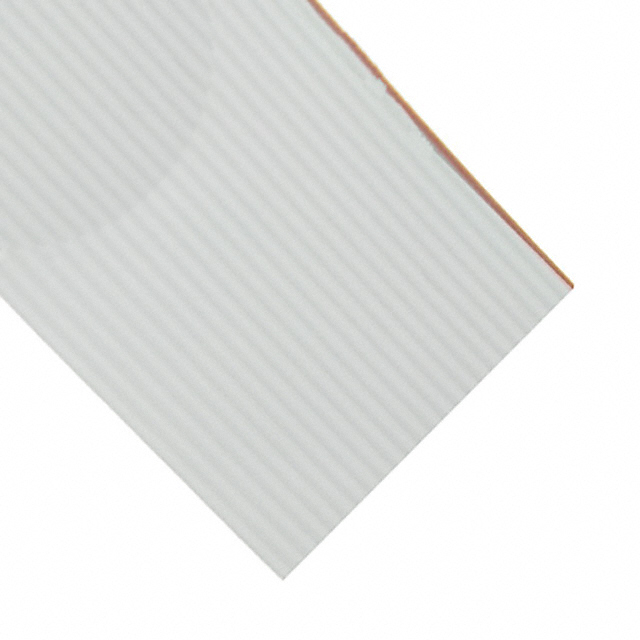

C3625/24 100M

Active

3M (TC)

CBL RIBN 24COND 0.039 GRAY

Search across all available documentation for this part.

Active

3M (TC)

CBL RIBN 24COND 0.039 GRAY

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Ribbon Width [custom]	Ribbon Width [custom]	Voltage	Pitch [x]	Pitch [x]	Insulation Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Number of Conductors	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Jacket Color	Wire Gauge	First Conductor Mark	Cable Type	Ribbon Thickness	Ribbon Thickness	Ratings	Features	Ribbon Width	Ribbon Width
3M (TC) C3625/10	Unshielded	10 mm	0.394 in	300 V	0.039 in	1 mm	10 GOhm	-20 C	105 ░C	Copper Tinned	10	Poly-Vinyl Chloride (PVC)	7	36 AWG	328.1 ft	100 m	Gray	28 AWG	Red	Flat Cable	0.89 mm	0.035 in
3M (TC) C3625/40 30M	Unshielded			300 V	0.039 in	1 mm	10 GOhm	-20 C	105 ░C	Copper Tinned	40	Poly-Vinyl Chloride (PVC)	7	36 AWG	3.28 ft 98.4 ft	1 m 30 m	Gray	28 AWG	Red	Flat Cable	0.89 mm	0.035 in	UL Style 2651	Zippable	40 mm	1.575 in
3M (TC) C3625/10 30M	Unshielded	10 mm	0.394 in	300 V	0.039 in	1 mm	10 GOhm	-20 C	105 ░C	Copper Tinned	10	Poly-Vinyl Chloride (PVC)	7	36 AWG	3.28 ft 16.4 '	1 m 5 m	Gray	28 AWG	Red	Flat Cable	0.89 mm	0.035 in	UL Style 2651	Zippable
3M (TC) C3625/24 100M	Unshielded			300 V	0.039 in	1 mm	10 GOhm	-20 C	105 ░C	Copper Tinned	24	Poly-Vinyl Chloride (PVC)	7	36 AWG	328.1 ft	100 m	Gray	28 AWG	Red	Flat Cable	0.89 mm	0.035 in	UL Style 2651	Zippable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 4.22
LCSC	Piece	1	$ 287.62

General part information

Flat Ribbon Cable Gray 24 Conductors 0.039" (1.00mm) Flat Cable 328.1' (100.00m)
