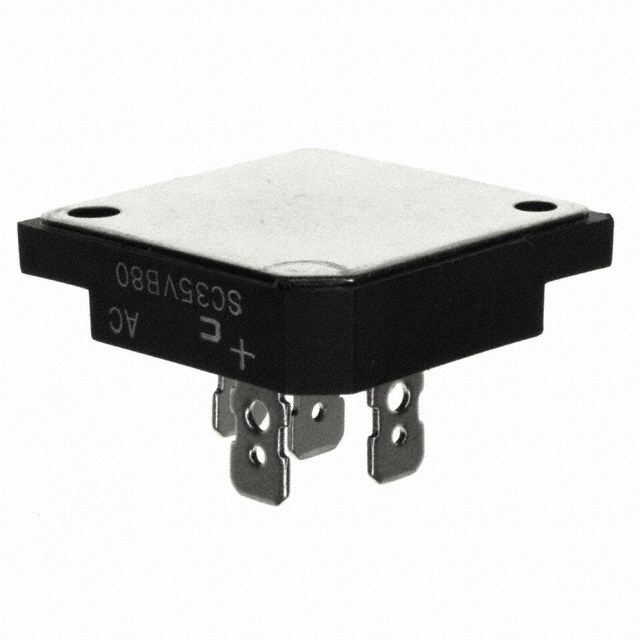

SC35VB80-G

Active

Comchip Technology

RECTIFIER BRIDGE DIODE SINGLE 800V 35A 5-PIN CASE SCVB BOX

Search across all available documentation for this part.

Active

Comchip Technology

RECTIFIER BRIDGE DIODE SINGLE 800V 35A 5-PIN CASE SCVB BOX

Technical Specifications

Parameters and characteristics for this part

Specification	SC35VB80-G

Current - Average Rectified (Io)	35 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	5-Square, SCVB
Supplier Device Package	SCVB
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.05 V
Voltage - Peak Reverse (Max) [Max]	800 V

RECTIFIER BRIDGE DIODE SINGLE 800V 35A 5-PIN CASE SCVB BOX

Part	Mounting Type	Technology	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Diode Type	Current - Average Rectified (Io)	Package / Case	Current - Reverse Leakage @ Vr	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]
Comchip Technology SC35VB80-G	Chassis Mount	Standard	1.05 V	800 V	Three Phase	35 A	5-Square, SCVB	10 µA	SCVB	-55 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Three Phase Standard 800 V Chassis Mount SCVB
