AMC1602AR-B-T6WTDY
ActiveOrient Display
LCD COB CHAR 16X2 FSTN- TRANSM
AMC1602AR-B-T6WTDY
ActiveOrient Display
LCD COB CHAR 16X2 FSTN- TRANSM
Description
General part information
AMC1602AR-B-T6WTDY

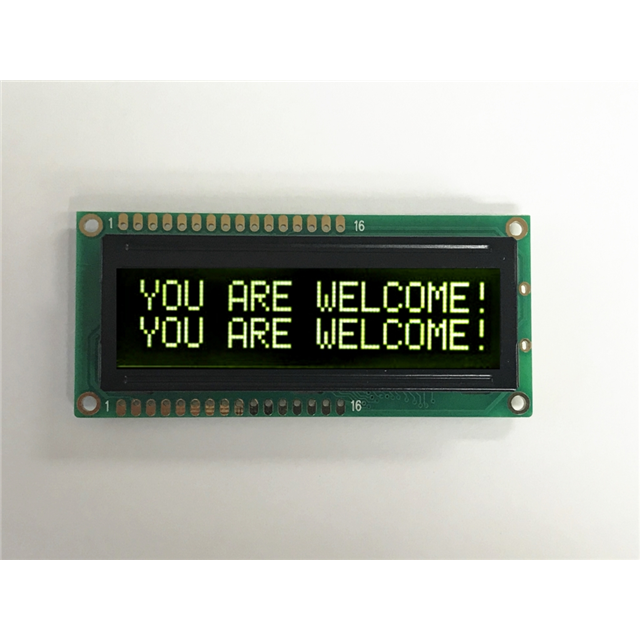

Character Display Module Transmissive 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - Yellow/Green Parallel, 8-Bit 80.00mm x 36.00mm x 14.00mm
Technical Specifications
Parameters and characteristics for this part
| Specification | AMC1602AR-B-T6WTDY |
|---|---|
| Background Color | Black |
| Backlight Color | Yellow, Green |
| Backlight Type | LED |
| Character Height | 5.55 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 2.95 mm |
| Character Width (Dots) | 5 Dots |
| Controller Type | S6A0069 |
| Display Columns | 16 |
| Display Mode | Transmissive |
| Display Rows | 2 |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Dot Size Height | 0.65 mm |
| Dot Size Width | 0.55 mm |
| Interface | Parallel |
| Interface Data Width | 8 Bit |
| Number of Characters | 32 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Height | 14 mm |
| Outline Length | 80 mm |
| Outline Width | 36 mm |
| Text Color | Green, Yellow |
| Viewing Area Length | 64.5 mm |
| Viewing Area Width | 15.5 mm |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
