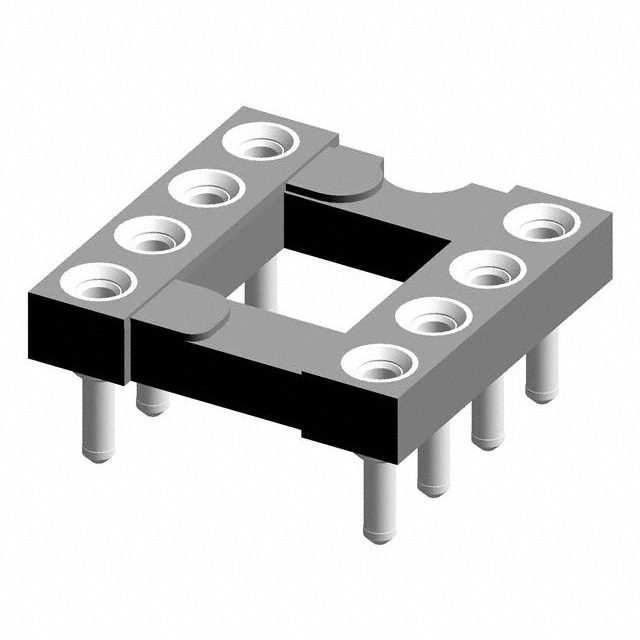

115-87-308-41-003101

Active

Preci-Dip

CONN IC DIP SOCKET 8POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

115-87-308-41-003101

Active

Preci-Dip

CONN IC DIP SOCKET 8POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	5616	$ 0.38

Description

General part information

115-87 Series

8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	115-87-308-41-003101	115-87 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	Flash	Flash
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Features	Open Frame	Open Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	8	8 - 64
Number of Positions or Pins (Grid)	-	2 x 5, 2 x 16
Number of Positions or Pins (Grid)	-	10
Number of Positions or Pins (Grid)	-	4
Number of Positions or Pins (Grid)	-	3 - 20
Number of Positions or Pins (Grid)	-	2
Number of Positions or Pins (Grid)	-	32
Number of Positions or Pins (Grid)	-	6 - 50
Number of Positions or Pins (Grid)	-	25
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	2.41 mm	2.41 mm
Termination Post Length	0.095 in	0.095 in
Type	0.3 "	0.2 - 0.9 in
Type	7.62 mm	5.08 - 22.86 mm
Type	DIP	DIP

115-87 Series

CONN IC DIP SOCKET 24POS GOLD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Material Flammability Rating	Type	Type	Type	Contact Material - Post [custom]	Mounting Type	Contact Finish - Mating	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Features	Contact Material - Mating	Current Rating (Amps)	Housing Material	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid)	Pitch - Post	Pitch - Post	Contact Finish Thickness - Mating	Contact Resistance	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Preci-Dip 115-87-624-41-003101	-55 °C	125 °C	Solder	UL94 V-0	DIP	0.6 in	15.24 mm	Brass	Through Hole	Gold	Tin	0.1 in	2.54 mm	Open Frame	Beryllium Copper	1 A	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.41 mm	0.095 in	24	2.54 mm	0.1 in	Flash	10 mOhm
Preci-Dip 115-87-210-41-001101	-55 °C	125 °C	Solder	UL94 V-0	DIP	0.2 in	5.08 mm	Brass	Through Hole	Gold	Tin	0.1 in	2.54 mm	Open Frame	Beryllium Copper	1 A	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.41 mm	0.095 in		2.54 mm	0.1 in	Flash	10 mOhm	2 x 5	10
Preci-Dip 115-87-304-41-001101	-55 °C	125 °C	Solder	UL94 V-0	DIP	0.3 "	7.62 mm	Brass	Through Hole	Gold	Tin	0.1 in	2.54 mm	Open Frame	Beryllium Copper	1 A	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.41 mm	0.095 in		2.54 mm	0.1 in	Flash	10 mOhm			4
Preci-Dip 115-87-964-41-001101	-55 °C	125 °C	Solder	UL94 V-0	DIP	0.9 in	22.86 mm	Brass	Through Hole	Gold	Tin	0.1 in	2.54 mm	Open Frame	Beryllium Copper	1 A	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.41 mm	0.095 in	64	2.54 mm	0.1 in	Flash	10 mOhm
Preci-Dip 115-87-640-41-003101	-55 °C	125 °C	Solder	UL94 V-0	DIP	0.6 in	15.24 mm	Brass	Through Hole	Gold	Tin	0.1 in	2.54 mm	Open Frame	Beryllium Copper	1 A	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.41 mm	0.095 in	40	2.54 mm	0.1 in	Flash	10 mOhm				20	2
Preci-Dip 115-87-308-41-001101	-55 °C	125 °C	Solder	UL94 V-0	DIP	0.3 "	7.62 mm	Brass	Through Hole	Gold	Tin	0.1 in	2.54 mm	Open Frame	Beryllium Copper	1 A	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.41 mm	0.095 in	8	2.54 mm	0.1 in	Flash	10 mOhm
Preci-Dip 115-87-314-41-003101	-55 °C	125 °C	Solder	UL94 V-0	DIP	0.3 "	7.62 mm	Brass	Through Hole	Gold	Tin	0.1 in	2.54 mm	Open Frame	Beryllium Copper	1 A	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.41 mm	0.095 in	14	2.54 mm	0.1 in	Flash	10 mOhm
Preci-Dip 115-87-632-41-001101	-55 °C	125 °C	Solder	UL94 V-0	DIP	0.6 in	15.24 mm	Brass	Through Hole	Gold	Tin	0.1 in	2.54 mm	Open Frame	Beryllium Copper	1 A	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.41 mm	0.095 in		2.54 mm	0.1 in	Flash	10 mOhm	2 x 16					32
Preci-Dip 115-87-306-41-001101	-55 °C	125 °C	Solder	UL94 V-0	DIP	0.3 "	7.62 mm	Brass	Through Hole	Gold	Tin	0.1 in	2.54 mm	Open Frame	Beryllium Copper	1 A	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.41 mm	0.095 in		2.54 mm	0.1 in	Flash	10 mOhm				3	2		6
Preci-Dip 115-87-632-41-003101	-55 °C	125 °C	Solder	UL94 V-0	DIP	0.6 in	15.24 mm	Brass	Through Hole	Gold	Tin	0.1 in	2.54 mm	Open Frame	Beryllium Copper	1 A	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	2.41 mm	0.095 in		2.54 mm	0.1 in	Flash	10 mOhm	2 x 16					32
