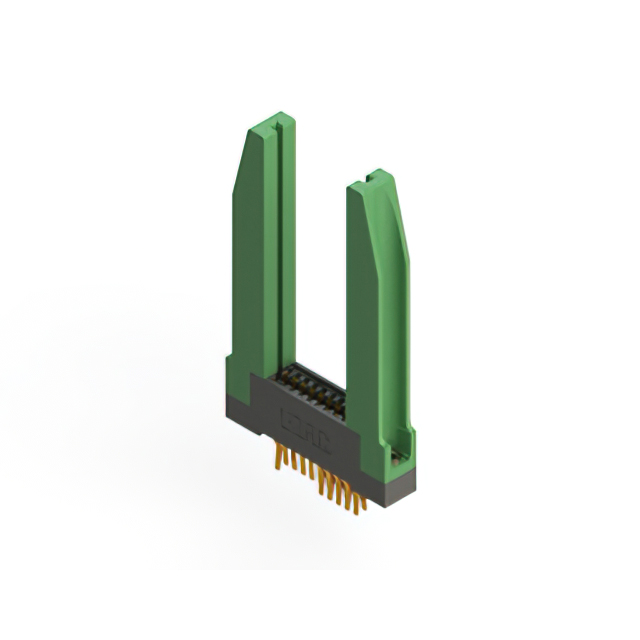

395-020-560-278
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-020-560-278
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-020-560-278 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
395-020 Series
...
| Part | Gender | Number of Rows | Number of Positions | Pitch [x] | Pitch [x] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Termination Rows | Card Type | Contact Material | Termination | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Color | Features | Flange Feature | Flange Feature | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | 1 | 20 | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Through Hole | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 20 | 20 | 20 | 1 | Non Specified - Single Edge | Copper Alloy | Solder | Polyester Thermoplastic | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Black | ||||
EDAC Inc. | Female | 1 | 20 | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Through Hole Right Angle | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 20 | 20 | 20 | 1 | Non Specified - Single Edge | Copper Alloy | Solder | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Black | Card Guides | |||||
EDAC Inc. | Female | 1 | 20 | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Through Hole Right Angle | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 20 | 20 | 20 | 1 | Non Specified - Single Edge | Copper Alloy | Solder | Polyester Thermoplastic | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Black | ||||
EDAC Inc. | Female | 2 | 20 | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Non Specified - Dual Edge | Copper Alloy | Solder | Polyester Thermoplastic | Side Mount Opening Unthreaded | Black | Card Extender | 3.25 mm | 0.128 in | 10 | |||||
EDAC Inc. | Female | 2 | 20 | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Through Hole | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Non Specified - Dual Edge | Copper Alloy | Wire Wrap | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Black | Card Guides | 10 | |||||||
EDAC Inc. | Female | 1 | 20 | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Through Hole | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 20 | 20 | 20 | 1 | Non Specified - Single Edge | Copper Alloy | Solder | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Black | Card Guides | |||||
EDAC Inc. | Female | 2 | 20 | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Through Hole | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Non Specified - Dual Edge | Copper Alloy | Solder | Polyester Thermoplastic | Black | 3.25 mm | 0.128 in | 10 | |||||||
EDAC Inc. | Female | 2 | 20 | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Through Hole Right Angle | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Non Specified - Dual Edge | Copper Alloy | Solder | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Black | Card Guides | 10 | |||||||
EDAC Inc. | Female | 2 | 20 | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Non Specified - Dual Edge | Copper Alloy | Solder | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Black | 10 | ||||||||
EDAC Inc. | Female | 2 | 20 | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Through Hole | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 2 | Non Specified - Dual Edge | Copper Alloy | Wire Wrap | Polyester Thermoplastic | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Black | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-020 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
