AISC-Q1008HQ-47NK-T
ActiveAbracon LLC
FIXED IND 47NH 1.2A SMD
AISC-Q1008HQ-47NK-T
ActiveAbracon LLC
FIXED IND 47NH 1.2A SMD
Description
General part information
AISC-Q1008HQ-47NK-T

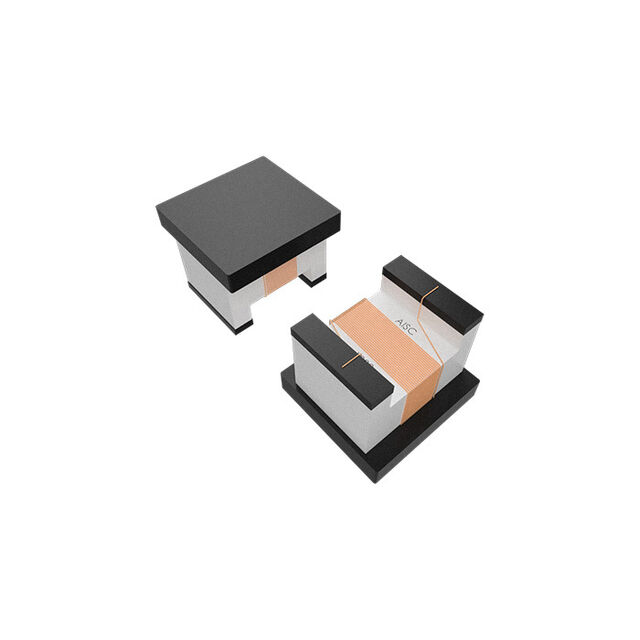

47 nH Unshielded Wirewound Inductor 1.2 A 120mOhm Max 1008 (2520 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | AISC-Q1008HQ-47NK-T |
|---|---|
| Current Rating | 1.2 A |
| DC Resistance (DCR) (Max) | 120 mOhm |
| Frequency - Self Resonant | 1.45 GHz |
| Height - Seated (Max) | 0.08 in |
| Inductance | 47 nH |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1008 (2520 Metric) |
| Package Name | 1008 |
| Q | 75 |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.115 in |
| Size / Dimension Width | 0.11 in |
| Tolerance | 10 % |
| Type | Wirewound |
