FERRITE CORE E 95 SET
Magnetics - Transformer, Inductor Components
9495205002
ActiveFair-Rite Products Corp.
FERRITE CORE E 95 SET
Technical Specifications
Parameters and characteristics for this part
| Specification | 9495205002 |
|---|---|
| Core Factor (ΣI/A) mm⁻¹ | 30 mm⁻¹ |
| Core Type | E |
| Effective Area (Ae) | 190 mm² |
| Effective Length (le) | 52.9 mm |
| Effective Magnetic Volume (Ve) | 10100 mm³ |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 0.325 in |
| Initial Permeability (µi) | 3000 |
| Length | 1.5 in |
| Material | 95 |
| Minimum Core Cross Section (Amin) (mm²) | 180 mm² |
| Tolerance | 25 % |
| Width | 1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.27 | <1d |
| 10 | $ 2.93 | |||
| 25 | $ 2.48 | |||
| 50 | $ 2.17 | |||
| 135 | $ 1.77 | |||
| 270 | $ 1.60 | |||
CAD
3D models and CAD resources for this part
Description
General part information
9495205002

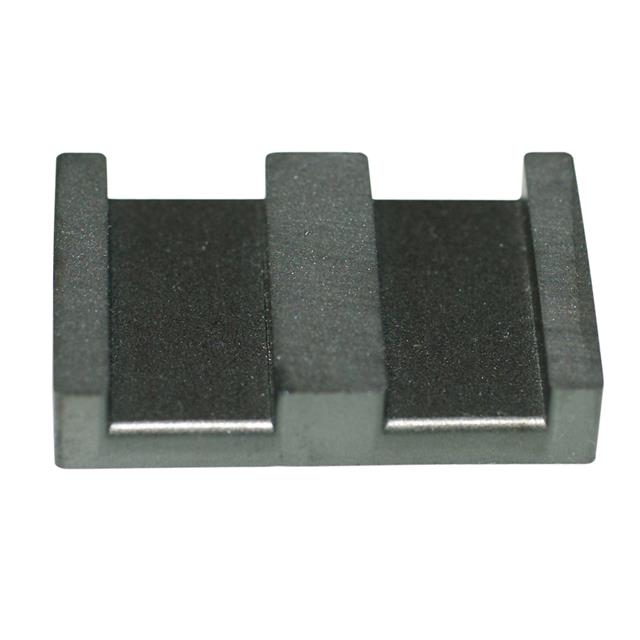

Uncoated 95 Ferrite Core E Type 1.500" (38.10mm) Length 1.000" (25.40mm) Width Diameter 0.325" (8.26mm) Height
