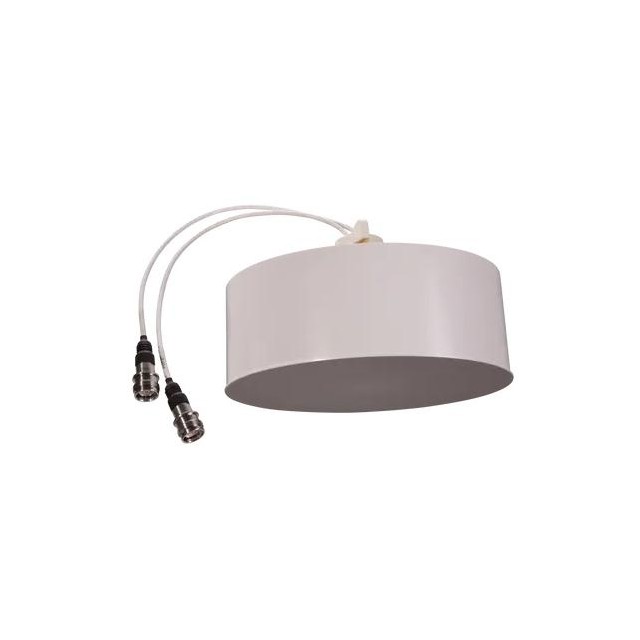

1399.31.0010
ActiveANTENNA, OMNI-DIRECTIONAL, 3.6 TO 3.8GHZ ROHS COMPLIANT: YES
1399.31.0010
ActiveANTENNA, OMNI-DIRECTIONAL, 3.6 TO 3.8GHZ ROHS COMPLIANT: YES
Description
General part information
1399.31.0010
744MHz, 875MHz, 1.533GHz, 1.932GHz, 2.435GHz, 3.5GHz, 3.7GHz CDMA, GSM, LTE, UMTS, WLAN Module RF Antenna 698MHz ~ 790MHz, 790MHz ~ 960MHz, 1.447GHz ~ 1.66GHz, 1.695GHz ~ 2.17GHz, 2.17GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz, 3.6GHz ~ 3.8GHz 2dBi, 2dBi, 4dBi, 6dBi, 7dBi, 6dBi, 6dBi 4.3/10 - Female (2) Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1399.31.0010 |
|---|---|
| Antenna Type | Module |
| Applications | GSM, LTE, WLAN, CDMA, UMTS |
| Features | Cable, 350mm |
| Frequency (Center/Band) | 2.435GHz, 1.932GHz, 3.7GHz, 3.5GHz, 875MHz, 1.533GHz, 744MHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 790 MHz |
| Frequency Range (Band 1) Minimum | 698 MHz |
| Frequency Range (Band 2) Maximum | 960 MHz |
| Frequency Range (Band 2) Minimum | 790 MHz |
| Frequency Range (Band 3) Maximum | 1.66 GHz |
| Frequency Range (Band 3) Minimum | 1.447 GHz |
| Frequency Range (Band 4) Maximum | 2.17 GHz |
| Frequency Range (Band 4) Minimum | 1.695 GHz |
| Frequency Range (Band 5) Maximum | 2.7 GHz |
| Frequency Range (Band 5) Minimum | 2.17 GHz |
| Frequency Range (Band 6) Maximum | 3.6 GHz |
| Frequency Range (Band 6) Minimum | 3.4 GHz |
| Frequency Range (Band 7) Maximum | 3.8 GHz |
| Frequency Range (Band 7) Minimum | 3.6 GHz |
| Gain | 2 dBi, 4 dBi, 7 dBi, 6 dBi |
| Height (Max) | 3.425 in |
| Mounting Type | Chassis Mount |
| Number of Bands | 7 |
| RF Family/Standard | Cellular |
| Termination Gender | Female |
| Termination Pin Count | 10 pins |
| Termination Pitch | 4.3 mm |
| Termination Rows | 2 rows |
| VSWR | 1.7, 1.5 |
| VSWR Maximum | 1.7 |
| VSWR Minimum | 1.5 |
