100024413
ActiveTelegartner Inc
7-16 PLG STR CR/CR RG-213/U
100024413
ActiveTelegartner Inc
7-16 PLG STR CR/CR RG-213/U
Description
General part information
100024413

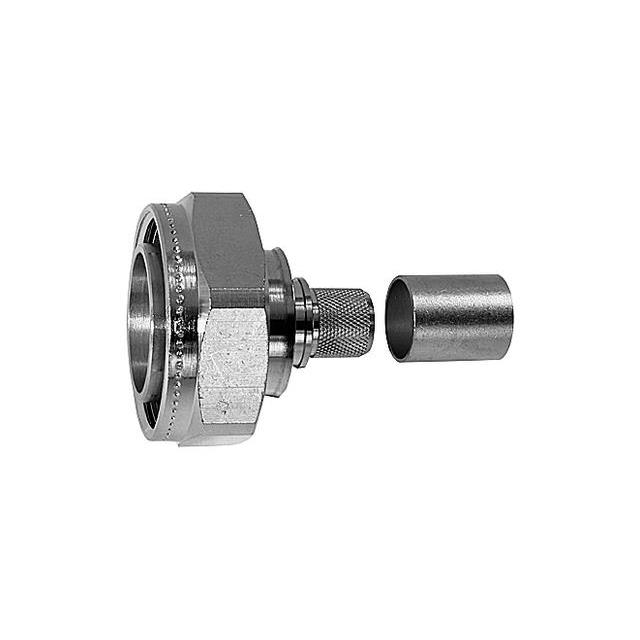

7/16 DIN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 100024413 |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | RG-213 |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | 7/16 DIN |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Perfluoroalkoxy (PFA) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Crimp |
