787421-1

Obsolete

TE Connectivity AMP Connectors

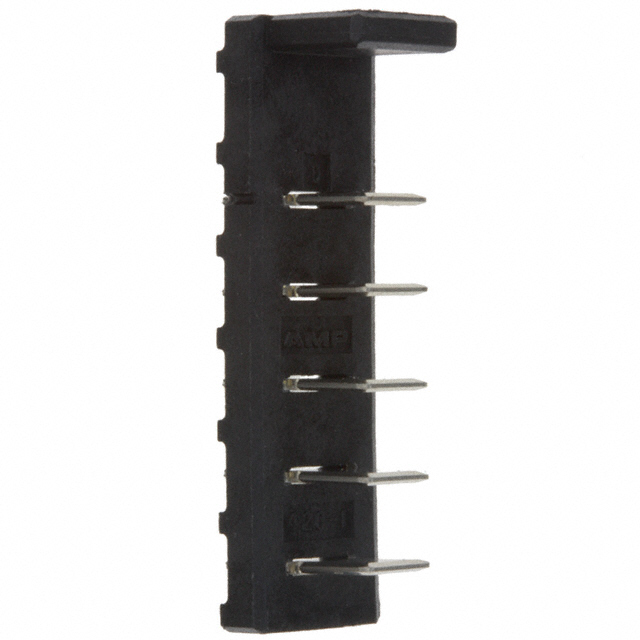

CONN HDR 5POS 5.00MM KINKED PIN

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN HDR 5POS 5.00MM KINKED PIN

Technical Specifications

Parameters and characteristics for this part

Specification	787421-1

Color	Black
Connector Style	10.8V Battery
Connector Type	Male Blades, Header
Contact Finish	Nickel
Contact Finish Thickness	1.9 µm
Contact Finish Thickness	74.8 µin
Contact Material	Brass
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Features	Board Guide, Right Hand Keying
Material - Insulation	Polyphthalamide (PPA)
Mounting Type	Through Hole
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Termination	Kinked Pin
Voltage Rating	10.8 V

CONN HDR 5POS 5.00MM KINKED PIN

Part	Fastening Type	Connector Style	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Pitch [x]	Pitch [x]	Voltage Rating	Current Rating (Amps)	Color	Contact Finish	Termination	Connector Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Material - Insulation
TE Connectivity AMP Connectors 787421-1	Push-Pull	10.8V Battery	Board Guide, Right Hand Keying	1.9 µm	74.8 µin	1	5 mm	0.197 in	10.8 V	7 A	Black	Nickel	Kinked Pin	Header, Male Blades	Through Hole	70 °C	-30 ░C	Brass	Polyphthalamide (PPA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Header, Male Blades Connector Kinked Pin 0.197" (5.00mm) Through Hole
