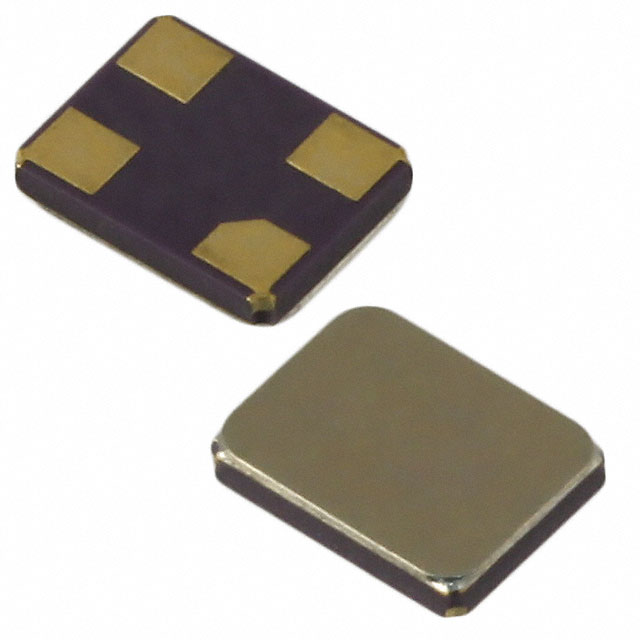

CS325H-40.000MEDQ-UT
ObsoleteCitizen Finedevice Co Ltd
CRYSTAL 40.0000MHZ 10PF SMD
CS325H-40.000MEDQ-UT
ObsoleteCitizen Finedevice Co Ltd
CRYSTAL 40.0000MHZ 10PF SMD
Description
General part information
CS325H-40.000MEDQ-UT
40 MHz ±10ppm Crystal 10pF 50 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CS325H-40.000MEDQ-UT |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohm |
| Frequency | 40 MHz |
| Frequency Stability | 20 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) | 0.024 in |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | MHz Crystal |
