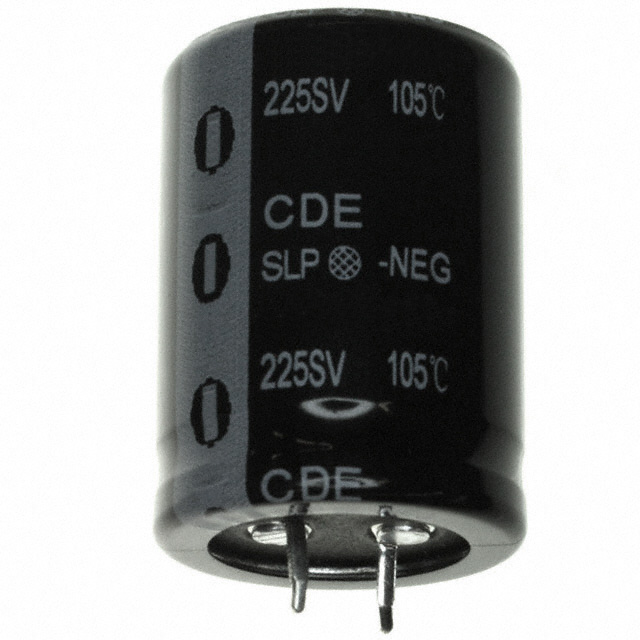

Specification	SLP392M080E7P3

Applications	General Purpose
Capacitance	3900 µF
ESR (Equivalent Series Resistance)	85 mOhm
Height - Seated (Max)	1.575 in
Lead Spacing	0.394 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	2.82 A, 3.53 A
Size / Dimension Diameter	1.181 in
Tolerance	20 %
Voltage - Rated	80 Vp-p
