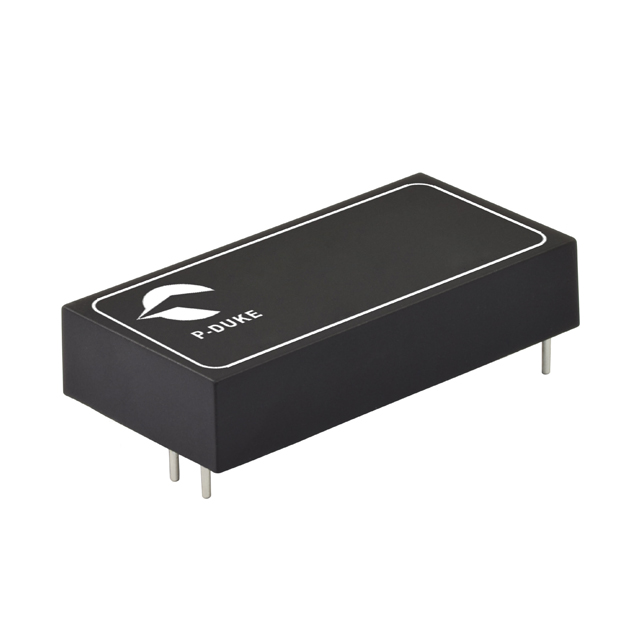

MPD30-48S12W

Active

P-DUKE Technology

DC DC CONVERTER 12V 30W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC DC CONVERTER 12V 30W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 12V 30W

Part	Voltage - Input (Min) [Min]	Voltage - Isolation	Type	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Voltage - Output 1	Applications	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Number of Outputs	Efficiency	Current - Output (Max) [Max]	Power (Watts)	Features
P-DUKE Technology MPD30-48S12W	18 V	5000 V	Isolated Module	CB, CE, cURus, FCC	-40 °C	105 C	75 V	12 V	ITE (Commercial), Medical	5 Leads	6-DIP Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	1	89 %	2.5 A	30 W	Adjustable Output
P-DUKE Technology MPD30-12S24	9 V	5000 V	Isolated Module	CB, CE, cURus, FCC	-40 °C	105 C	18 V	24 V	ITE (Commercial), Medical	5 Leads	6-DIP Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	1	89 %	1.25 A	30 W	Adjustable Output
P-DUKE Technology MPD30-24S24	18 V	5000 V	Isolated Module	CB, CE, cURus, FCC	-40 °C	105 C	36 V	24 V	ITE (Commercial), Medical	5 Leads	6-DIP Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	1		1.25 A	30 W	Adjustable Output
P-DUKE Technology MPD30-24S15W	9 V	5000 V	Isolated Module	CB, CE, cURus, FCC	-40 °C	105 C	36 V	15 V	ITE (Commercial), Medical	5 Leads	6-DIP Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	1	90.5 %	2 A	30 W	Adjustable Output

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 2.5A 18V - 75V Input
