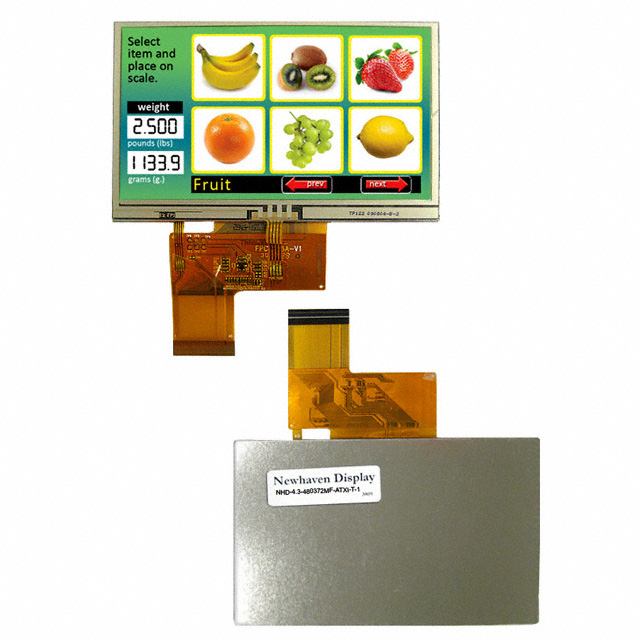

NHD-4.3-480272MF-ATXI#-T-1
ObsoleteNewhaven Display Intl
LCD DISPLAY TFT 480X272 TRANS
Deep-Dive with AI
Search across all available documentation for this part.
NHD-4.3-480272MF-ATXI#-T-1
ObsoleteNewhaven Display Intl
LCD DISPLAY TFT 480X272 TRANS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-4.3-480272MF-ATXI#-T-1 |
|---|---|
| Backlight | LED - White |
| Diagonal Screen Size | 109.22 mm |
| Diagonal Screen Size | 4.3 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch [x] | 0.2 mm |
| Dot Pitch [y] | 0.2 mm |
| Dot Pixels [x] | 480 |
| Dot Pixels [y] | 272 |
| Dot Size [x] | 0.17 mm |
| Dot Size [y] | 0.19 mm |
| Graphics Color | Green, Red, Blue |
| Interface | Parallel |
| Interface | 24 Bit |
| Touchscreen | Resistive |
| Viewing Area [x] | 97.7 mm |
| Viewing Area [y] | 55.9 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NHD-4.3-480272MF-ATXI#-T-1
Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 4.3" (109.22mm) 480 x 272
