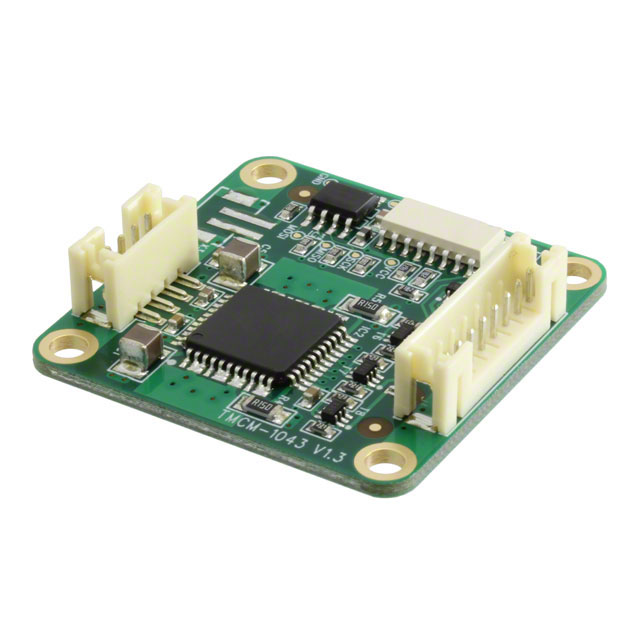

TMCM-1043
ObsoleteAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 1.1A 9-28V LOAD
TMCM-1043
ObsoleteAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 1.1A 9-28V LOAD
Description
General part information
TMCM-1043
Stepper, Bipolar 9 ~ 28VDC Supply 1.1A 9 ~ 28V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCM-1043 |
|---|---|
| Control / Drive Type | Stepper, Bipolar |
| Current - Output | 1.1 A |
| Interface | Step / Direction |
| Motor Type | Stepper |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -30 °C |
| Type | Board |
| Voltage - Load (Max) | 28 V |
| Voltage - Load (Min) | 9 V |
| Voltage - Supply (Maximum) | 28 V |
| Voltage - Supply (Minimum) | 9 VDC |
