EZ-240-SM-PL-X

Active

Amphenol Times Microwave Systems

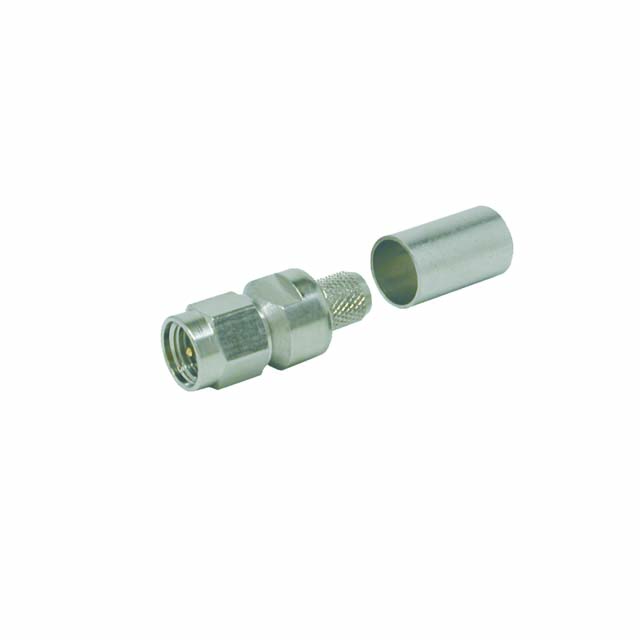

SMA-MALE (PLUG) CRIMP CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EZ-240-SM-PL-X

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) CRIMP CONNECTOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	34	$ 10.53

Description

General part information

EZ-240 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EZ-240-SM-PL-X	EZ-240 Series

Body Finish	White Bronze	White Bronze, Tin, Nickel
Body Material	Brass	Brass
Cable Group	LMR-240	LMR-240, LMR-195, LMR-240-75
Center Contact Material	Beryllium Copper	Brass, Beryllium Copper, Phosphor Bronze
Center Contact Plating	Gold	Gold
Connector Style	SMA	BNC, N Type, TNC, 1.0/2.3, 4.3/10, RP-TNC, SMA, QN, F Type
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Push On	Push On, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Bayonet Lock, Snap-On, Push-Pull
Frequency - Max [Max]	6000 MHz	1.5 - 6000 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Includes	-	1 Connector, 1 Ferrule, 1 Nut, 1 Lockwasher
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	125 °C	70 - 165 °C
Operating Temperature [Min]	-55 °C	-65 - -40 °C
Shield Termination	Crimp	Crimp
Voltage Rating	335 V	2.5 - 1000 V

EZ-240 Series

BNC-MALE (PLUG) CRIMP RIGHT ANGL

Part	Frequency - Max [Max]	Voltage Rating	Number of Ports	Body Material	Contact Termination	Impedance	Housing Color	Shield Termination	Mating Cycles	Center Contact Plating	Mounting Type	Cable Group	Connector Type	Fastening Type	Body Finish	Center Contact Material	Connector Style	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Mounting Feature
Amphenol Times Microwave Systems EZ-240-BM-RA-X	6000 MHz	500 V	1	Brass	Push On	50 Ohms	Silver	Crimp	500	Gold	Free Hanging (In-Line), Right Angle	LMR-240	Male Pin, Plug	Bayonet Lock	White Bronze	Brass	BNC	Polytetrafluoroethylene (PTFE)	155 °C	-55 °C
Amphenol Times Microwave Systems EZ-240-FM-75-X	2.5 GHz		1	Brass	Crimp	50 Ohms	Silver	Crimp	500	Gold	Free Hanging (In-Line)	LMR-240	Male Pin, Plug	Bayonet Lock	White Bronze	Beryllium Copper	BNC	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	1 Connector, 1 Ferrule
Amphenol Times Microwave Systems EZ-240-NMH-RA-X	6000 MHz		1		Push On	50 Ohms	Silver	Crimp		Gold	Free Hanging (In-Line), Right Angle	LMR-240	Male Pin, Plug		White Bronze		N Type		85 °C	-40 °C
Amphenol Times Microwave Systems EZ-240-QM-RA-X	6000 MHz		1	Brass	Push On	50 Ohms	Silver	Crimp		Gold	Free Hanging (In-Line), Right Angle	LMR-240	Male Pin, Plug	Snap-On	White Bronze	Beryllium Copper		Polytetrafluoroethylene (PTFE)	125 °C	-40 °C
Amphenol Times Microwave Systems EZ-240-TM-PL-X			1		Push On	50 Ohms	Silver	Crimp			Free Hanging (In-Line)	LMR-240	Male Pin, Plug				TNC
Amphenol Times Microwave Systems EZ-240-NMH-75-X	6000 MHz	2.5 kV	1	Brass	Crimp	50 Ohms	Silver	Crimp	500	Gold		LMR-240	Female Socket, Jack		White Bronze	Beryllium Copper	N Type	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	1 Connector, 1 Ferrule, 1 Lockwasher, 1 Nut	Bulkhead - Front Side Nut
Amphenol Times Microwave Systems EZ-240-QM-X	8 GHz		1	Brass	Push On	50 Ohms	Silver	Crimp		Gold	Free Hanging (In-Line)	LMR-240	Male Pin, Plug	Snap-On	White Bronze	Beryllium Copper		Polytetrafluoroethylene (PTFE)	125 °C	-40 °C
Amphenol Times Microwave Systems EZ-240-1023M-X	6000 MHz	500 V	1	Brass	Push On	50 Ohms	Silver	Crimp	500	Gold	Free Hanging (In-Line)	LMR-240	Male Pin, Plug	Push-Pull	White Bronze	Beryllium Copper	1.0/2.3	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C
Amphenol Times Microwave Systems EZ-240-4310M-X	6000 MHz	2.5 kV	1	Brass	Push On	50 Ohms	Silver	Crimp	500	Gold	Free Hanging (In-Line)	LMR-240	Male Pin, Plug		White Bronze	Beryllium Copper	4.3/10	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C
Amphenol Times Microwave Systems EZ-240-TM-RP-PL-X	6000 MHz	2.5 kV	1	Brass	Push On	50 Ohms	Silver	Crimp		Gold	Free Hanging (In-Line)	LMR-240	Male Pin, Plug		White Bronze	Beryllium Copper	RP-TNC	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C
