FMWCP1083-50
ActiveFairview Microwave

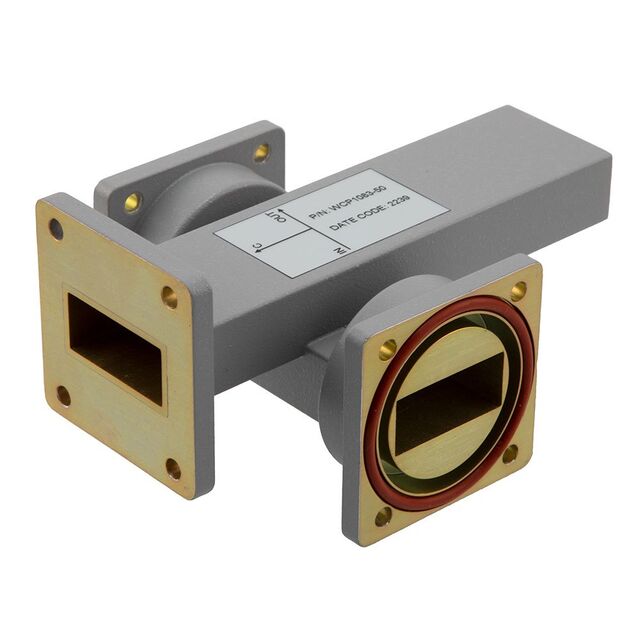

WG COUPLER WR-112 6.57-9.99 GHZ
FMWCP1083-50
ActiveFairview Microwave
WG COUPLER WR-112 6.57-9.99 GHZ
Description
General part information
FMWCP1083-50
RF Directional Coupler General Purpose 6.57GHz ~ 9.99GHz 50 ± 1.5dB Module
Technical Specifications
Parameters and characteristics for this part
| Specification | FMWCP1083-50 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 50 dB |
| Coupling Factor Tolerance | 1.5 dB |
| Frequency (Max) | 9.99 GHz |
| Frequency (Min) | 6.57 GHz |
| Insertion Loss | 0.1 dB |
| Package / Case | Module |
| Package Name | Module |
