HVG.2W.310.CLLP

Active

LEMO

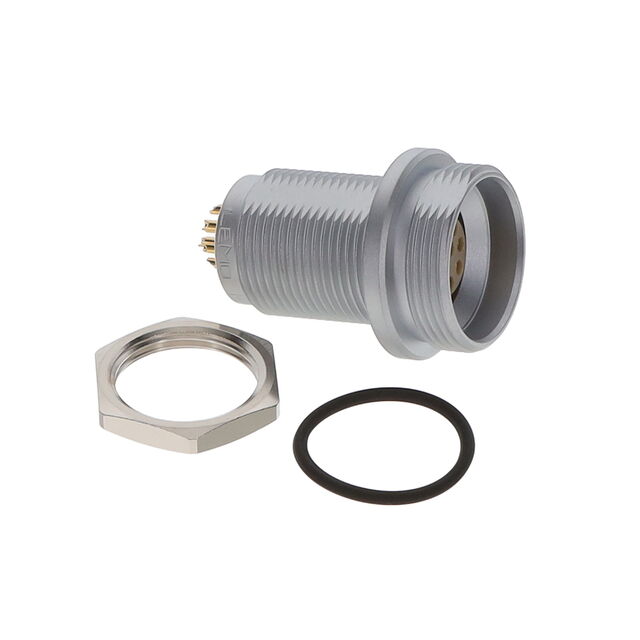

CONN RCPT FMALE 10P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HVG.2W.310.CLLP

Active

LEMO

CONN RCPT FMALE 10P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HVG.2W.310.CLLP	HVG.2W Series

Applications	Audio, Aviation, Military	Audio, Aviation, Military
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	8 A	5 - 30 A
Features	Potted	Vacuumtight, Potted
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	10	2 - 19
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	310	302 - 319
Shielding	Shielded	Shielded
Termination	-	Solder

HVG.2W Series

CONN RCPT FMALE 10P SOLDER CUP

Part	Orientation	Ingress Protection	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Applications	Material Flammability Rating	Contact Material	Features	Connector Type	Shell Finish	Shell Material	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Contact Finish - Mating	Mounting Feature	Number of Positions	Color	Primary Material	Termination	Mounting Type
LEMO HVG.2W.310.CLLPV	G	IP68 - Dust Tight, Waterproof	310	-20 C	80 C	8 A	Audio, Aviation, Military	UL94 V-0	Bronze	Potted, Vacuumtight	Receptacle, Female Sockets	Chrome	Brass	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Shielded	Gold	Bulkhead - Rear Side Nut	10	Silver	Metal
LEMO HVG.2W.304.CLLP	G	IP68 - Dust Tight, Waterproof	304	-20 C	80 C	15 A	Audio, Aviation, Military	UL94 V-0	Bronze	Potted	Receptacle, Female Sockets	Chrome	Brass	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Shielded	Gold	Bulkhead - Rear Side Nut	4	Silver	Metal
LEMO HVG.2W.319.CLLP	G	IP68 - Dust Tight, Waterproof	319	-20 C	80 C	5 A	Audio, Aviation, Military	UL94 V-0	Bronze	Potted	Receptacle, Female Sockets	Chrome	Brass	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Shielded	Gold	Bulkhead - Rear Side Nut	19	Silver	Metal
LEMO HVG.2W.318.CLNPV	G	IP68 - Dust Tight, Waterproof	318	-20 C	80 C	5.5 Amps	Audio, Aviation, Military	UL94 V-0	Bronze	Potted, Vacuumtight	Receptacle, Female Sockets	Chrome	Brass	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Shielded	Gold	Bulkhead - Rear Side Nut	18	Silver	Metal	Solder	Panel Mount, Through Hole
LEMO HVG.2W.306.CLLPV	G	IP68 - Dust Tight, Waterproof	306	-20 C	80 C	12 A	Audio, Aviation, Military	UL94 V-0	Bronze	Potted, Vacuumtight	Receptacle, Female Sockets	Chrome	Brass	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Shielded	Gold	Bulkhead - Rear Side Nut	6	Silver	Metal
LEMO HVG.2W.310.CLLP	G	IP68 - Dust Tight, Waterproof	310	-20 C	80 C	8 A	Audio, Aviation, Military	UL94 V-0	Bronze	Potted	Receptacle, Female Sockets	Chrome	Brass	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Shielded	Gold	Bulkhead - Rear Side Nut	10	Silver	Metal
LEMO HVG.2W.302.CLLPV	G	IP68 - Dust Tight, Waterproof	302	-20 C	80 C	30 A	Audio, Aviation, Military	UL94 V-0	Bronze	Potted, Vacuumtight	Receptacle, Female Sockets	Chrome	Brass	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Shielded	Gold	Bulkhead - Rear Side Nut	2	Silver	Metal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 139.13
		10	$ 127.67
		25	$ 122.76
		50	$ 118.67

Description

General part information

HVG.2W Series

10 Position Circular Connector Receptacle, Female Sockets Solder Cup
