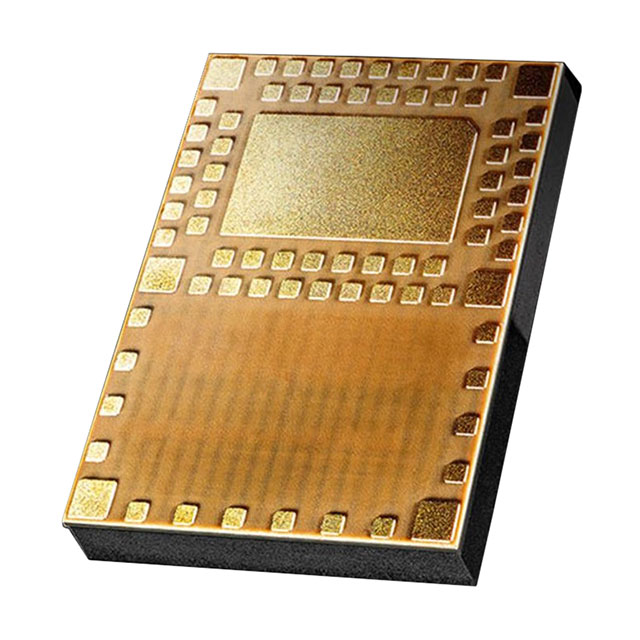

ISP130301-BL-RS

Obsolete

Insight SIP

RF TXRX MOD BT TH SMD

Search across all available documentation for this part.

Obsolete

Insight SIP

RF TXRX MOD BT TH SMD

Technical Specifications

Parameters and characteristics for this part

RF TXRX MOD BT TH SMD

Part	Power - Output	Antenna Type	Memory Size	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Package / Case	Serial Interfaces	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Data Rate	Mounting Type	Utilized IC / Part	Current - Transmitting [Max]	Current - Transmitting [Min]	Protocol
Insight SIP ISP130301-BL-RS	4 dBm	Integrated, Trace	32 kB, 256 kB	3.6 V	1.8 V	2.4 GHz	57-SMD Module	ADC, I2C, SPI, UART	Bluetooth	85 °C	-40 °C	-93 dBm	1.03 Gbps	Surface Mount	nRF51822	16 mA	10.5 mA	Bluetooth v4.2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz Integrated, Trace Surface Mount
