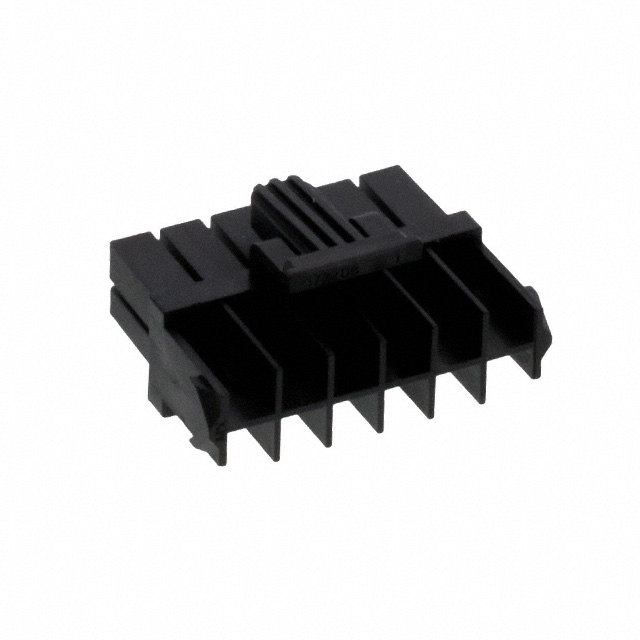

Specification	1727080012

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.165 in
Row Spacing	0.165 in

172708 Series

Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 18 Circuit

Part	Mounting Type	Color	Fastening Type	Number of Positions	Number of Rows	Pitch	Insulation Material	Contact Termination	Contact Type	Connector Type	Row Spacing	Operating Temperature (Min)	Operating Temperature (Max)	Note	Features
Molex 1727080018	Free Hanging (In-Line)	Black	Latch Lock	18	2	0.165 in	Nylon Polyamide (PA)	Crimp	Female Socket	Receptacle	0.165 in	-40 °C	105 °C	Contacts Not Included
Molex 1727081012	Free Hanging (In-Line)	Black	Latch Lock	12	2	0.165 in	Nylon Polyamide (PA)	Crimp	Female Socket	Receptacle	0.165 in	-40 °C	105 °C		Glow Wire Compliant
Molex 1727080024	Free Hanging (In-Line)	Black	Latch Lock	24 pos	2	0.165 in	Nylon Polyamide (PA)	Crimp	Female Socket	Receptacle	0.165 in	-40 °C	105 °C	Contacts Not Included
Molex 1727081018	Free Hanging (In-Line)	Black	Latch Lock	18	2	0.165 in	Nylon Polyamide (PA)	Crimp	Female Socket	Receptacle	0.165 in	-40 °C	105 °C		Glow Wire Compliant
Molex 1727080116	Free Hanging (In-Line)	Black	Latch Lock	16	2	0.165 in	Nylon Polyamide (PA)	Crimp	Female Socket	Receptacle	0.165 in	-40 °C	105 °C	Contacts Not Included	Glow Wire Compliant
Molex 1727080016	Free Hanging (In-Line)	Black	Latch Lock	16	2	0.165 in	Nylon Polyamide (PA)	Crimp	Female Socket	Receptacle	0.165 in	-40 °C	105 °C	Contacts Not Included
Molex 1727080006	Free Hanging (In-Line)	Black	Latch Lock	6	2	0.165 in	Nylon Polyamide (PA)	Crimp	Female Socket	Receptacle	0.165 in	-40 °C	105 °C
Molex 1727081002	Free Hanging (In-Line)	Black	Latch Lock	2	2		Nylon Polyamide (PA)	Crimp	Female Socket	Receptacle	0.165 in	-40 °C	105 °C	Contacts Not Included	Glow Wire Compliant
Molex 1727080102	Free Hanging (In-Line)	Black	Latch Lock	2	2		Nylon Polyamide (PA)	Crimp	Female Socket	Receptacle	0.165 in	-40 °C	105 °C	Contacts Not Included	Glow Wire Compliant
Molex 1727081016	Free Hanging (In-Line)	Black	Latch Lock	16	2	0.165 in	Nylon Polyamide (PA)	Crimp	Female Socket	Receptacle	0.165 in	-40 °C	105 °C		Glow Wire Compliant
