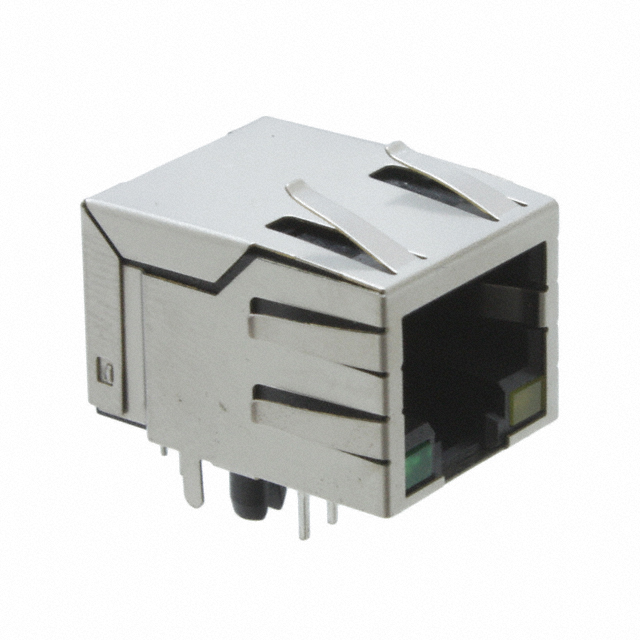

A60-112-331P411

Obsolete

EDAC Inc.

CONN JACK 1PORT 1000 BASE-T PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A60-112-331P411

Obsolete

EDAC Inc.

CONN JACK 1PORT 1000 BASE-T PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A60-112-331P411	A60-112 Series

Applications	AutoMDIX, 10/100/1000 Base-T	AutoMDIX, 10/100/1000 Base-T
Connector Type	RJ45	RJ45
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Material	Phosphor Bronze	Phosphor Bronze, Copper Alloy
Features	-	Board Guide
Height Above Board	0.535 in	0.535 in
Height Above Board	13.59 mm	13.59 mm
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled, Polyester, Polybutylene Terephthalate (PBT)
LED Color	Yellow, Green	Yellow, Green, Does Not Contain LED, Green - Green
Mounting Type	Through Hole	Through Hole
Number of Cores per Jack	8	8
Number of Ports	1	1
Number of Rows	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Orientation	90 °	90 °
Shield Material	Copper Alloy	Copper Alloy, Brass
Shielding	Shielded, EMI Finger	Shielded, EMI Finger
Tab Direction	Down	Down, Up
Termination	Solder	Solder

A60-112 Series

CONN JACK 1PORT 1000 BASE-T PCB

Part	Number of Ports	Number of Cores per Jack	Contact Material	Orientation	Height Above Board	Height Above Board	LED Color	Number of Rows	Operating Temperature [Max]	Contact Finish	Applications	Mounting Type	Housing Material	Shielding	Shield Material	Contact Finish Thickness	Tab Direction	Termination	Connector Type	Features
EDAC Inc. A60-112-331P432	1	8	Phosphor Bronze	90 °	0.535 in	13.59 mm	Green, Yellow	1	70 °C	Gold	10/100/1000 Base-T, AutoMDIX	Through Hole	Polybutylene Terephthalate (PBT), Glass Filled	Shielded, EMI Finger	Copper Alloy	Flash	Down	Solder	RJ45
EDAC Inc. A60-112-200P471	1	8	Phosphor Bronze	90 °	0.535 in	13.59 mm	Does Not Contain LED	1	70 °C	Gold	10/100/1000 Base-T, AutoMDIX	Through Hole	Polybutylene Terephthalate (PBT), Polyester	Shielded, EMI Finger	Copper Alloy	Flash	Up	Solder	RJ45
EDAC Inc. A60-112-233P471	1	8	Copper Alloy	90 °	0.535 in	13.59 mm	Green - Green	1	70 °C	Gold	10/100/1000 Base-T, AutoMDIX	Through Hole	Polybutylene Terephthalate (PBT), Polyester	Shielded, EMI Finger	Brass	Flash	Up	Solder	RJ45	Board Guide
EDAC Inc. A60-112-331P411	1	8	Phosphor Bronze	90 °	0.535 in	13.59 mm	Green, Yellow	1	70 °C	Gold	10/100/1000 Base-T, AutoMDIX	Through Hole	Polybutylene Terephthalate (PBT), Glass Filled	Shielded, EMI Finger	Copper Alloy	Flash	Down	Solder	RJ45
EDAC Inc. A60-112-300P432	1	8	Phosphor Bronze	90 °	0.535 in	13.59 mm	Does Not Contain LED	1	70 °C	Gold	10/100/1000 Base-T, AutoMDIX	Through Hole	Polybutylene Terephthalate (PBT), Polyester	Shielded, EMI Finger	Copper Alloy	Flash	Down	Solder	RJ45
EDAC Inc. A60-112-300P492	1	8	Phosphor Bronze	90 °	0.535 in	13.59 mm	Does Not Contain LED	1	70 °C	Gold	10/100/1000 Base-T, AutoMDIX	Through Hole	Polybutylene Terephthalate (PBT), Glass Filled	Shielded, EMI Finger	Copper Alloy	Flash	Down	Solder	RJ45

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

A60-112 Series

1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX

Documents

Technical documentation and resources
