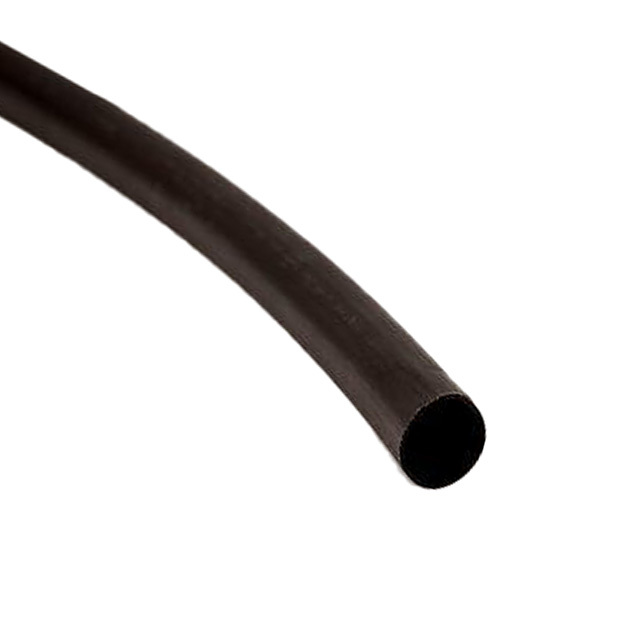

VTN-200-3/4-BLACK 100

Active

HEAT SHRINK VTN200 3/4 BK 50'SP

Search across all available documentation for this part.

Active

HEAT SHRINK VTN200 3/4 BK 50'SP

Technical Specifications

Parameters and characteristics for this part

Specification	VTN-200-3/4-BLACK 100

Color	Black
Features	Self Extinguishing
Inner Diameter - Recovered [diameter]	0.375 in
Inner Diameter - Recovered [diameter]	9.53 mm
Length	15.2 m, 3.05 m, 7.6 m, 1.52 m
Length	50 ft, 10 ft, 25 ft, 5 '
Length [x]	30.5 m
Length [x]	100 ft
Material	Fluoroelastomer (FKM)
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	1.07 mm
Recovered Wall Thickness	0.042 in
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	175 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Flexible

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

HEAT SHRINK VTN200 3/4 BK 50'SP

Part	Length	Length	Recovered Wall Thickness	Recovered Wall Thickness	Color	Shrink Temperature	Features	Operating Temperature [Min]	Operating Temperature [Max]	Material	Shrinkage Ratio	Shelf Life	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Type	Shelf Life Start	Length [x]	Length [x]
3M VTN-200-3/4-BLACK 100	1.52 m, 3.05 m, 7.6 m, 15.2 m	5 ', 10 ft, 25 ft, 50 ft	1.07 mm	0.042 in	Black	175 °C	Self Extinguishing	-55 °C	200 °C	Fluoroelastomer (FKM)	2 to 1	60 Months	0.375 in	9.53 mm	27 °C, 80 °F	10 °C	Tubing, Flexible	Date of Manufacture	30.5 m	100 ft

General part information

Heat Shrink Tubing, Flexible 0.750" (19.05mm) 2 to 1 Black 50.0' (15.2m)
