CA18CAN12PA

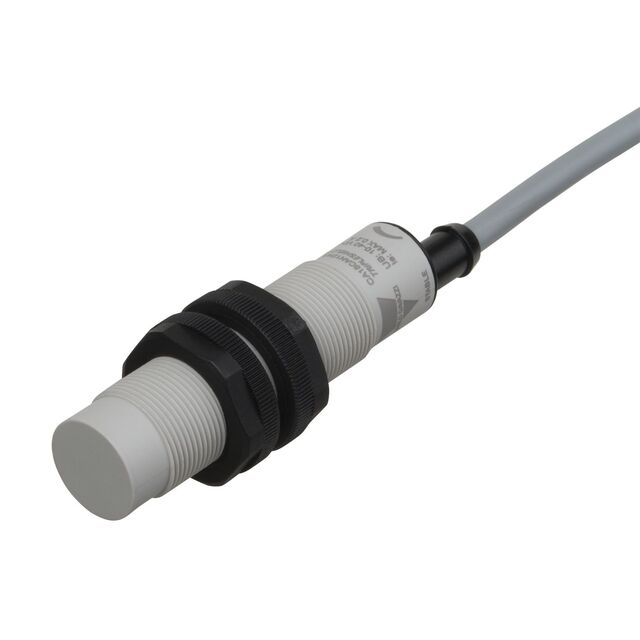

ActiveCAPACITIVE PROXIMITY SENSOR, TYPE CA18CAN, M18, 12 MM, PNP, 10 TO 40 VDC, PRE-WIRED
Deep-Dive with AI
Search across all available documentation for this part.
CA18CAN12PA
ActiveCAPACITIVE PROXIMITY SENSOR, TYPE CA18CAN, M18, 12 MM, PNP, 10 TO 40 VDC, PRE-WIRED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CA18CAN12PA | CA18CAN12 Series |
|---|---|---|
| Indicator [custom] | LED | LED |
| Ingress Protection | NEMA 1, IP68, NEMA 2, IP67, IP69K | NEMA 1, IP68, NEMA 2, IP67, IP69K |
| Material - Body | Plastic | Plastic |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Output Type | 4-Wire, PNP-NC/NO | NPN-NC/NO, 4-Wire, 4-Wire, PNP-NC/NO |
| Package / Case | Cylinder, Threaded - M18 | Cylinder, Threaded - M18 |
| Response Frequency | 50 Hz | 50 Hz |
| Sensing Distance [Max] | 0.472 " | 0.472 " |
| Sensing Distance [Max] | 12 mm | 12 mm |
| Sensing Distance [Min] | 3 mm | 3 mm |
| Sensing Distance [Min] | 0.118 " | 0.118 " |
| Sensor Type | Capacitive | Capacitive |
| Shielding | Shielded | Unshielded, Shielded |
| Termination Style | Cable Leads | Connector, Cable Leads |
| Voltage - Supply [Max] | 40 VDC | 40 VDC |
| Voltage - Supply [Min] | 10 VDC | 10 VDC |
CA18CAN12 Series
CAPACITIVE PROXIMITY SENSOR, TYPE CA18CAN, M18, 12 MM, NPN, 10 TO 40 VDC, M12 PLUG
| Part | Sensing Distance [Min] | Sensing Distance [Max] | Sensing Distance [Min] | Sensing Distance [Max] | Indicator [custom] | Output Type | Shielding | Ingress Protection | Package / Case | Termination Style | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Response Frequency | Material - Body | Sensor Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CARLO GAVAZZI CA18CAN12NAM1 | 3 mm | 0.472 " | 0.118 " | 12 mm | LED | NPN-NC/NO, 4-Wire | Unshielded | IP67, IP68, IP69K, NEMA 1, NEMA 2 | Cylinder, Threaded - M18 | Connector | 40 VDC | 10 VDC | -30 ░C | 85 °C | 50 Hz | Plastic | Capacitive |
CARLO GAVAZZI CA18CAN12PA | 3 mm | 0.472 " | 0.118 " | 12 mm | LED | 4-Wire, PNP-NC/NO | Shielded | IP67, IP68, IP69K, NEMA 1, NEMA 2 | Cylinder, Threaded - M18 | Cable Leads | 40 VDC | 10 VDC | -30 ░C | 85 °C | 50 Hz | Plastic | Capacitive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CA18CAN12 Series
The CA18CAN12PA is a Capacitive Proximity Switch features an improved 4TH Generation TRIPLESHIELDTM technology. Furthermore, the sensor features increased immunity to electromagnetic interference (EMI), especially to frequency drives. Not only does 4TH Generation TRIPLESHIELDTM feature an increased EMI, but it also increases the immunity to humidity and dust. The implementation of stability indication eases the setup procedure as both Stable ON and Stable OFF positions are indicated by the Green and yellow LEDs. The sensing distance is increased by 25% allowing room for additional stable detection. The Dust Alarm function gives an early warning that the sensing surroundings have to be cleaned. The Temperature alarm function raises an alarm if the sensing surface goes beyond 60 degree Celsius. The sensor housing is featuring IP69K as well as approval by ECOLAB for cleaning and disinfection agents.
