FMCN1513

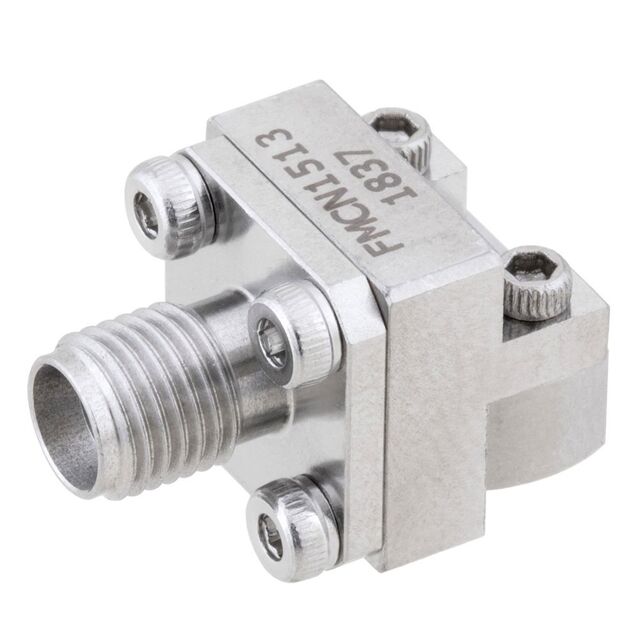

2.92mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1513 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Plug Diameter | 2.92 mm |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polyetherimide (PEI) |
| Fastening Type | Threaded |
| Features | Mounting Hardware |
| Frequency - Max | 40 Gbps |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Insertion Loss | 0.38 dB |
| Mounting Type | End Launch, Board Edge |
| Number of Ports | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Screw |
| Voltage Rating | 400 V |
