14H26-SZ3M-500-03C

Active

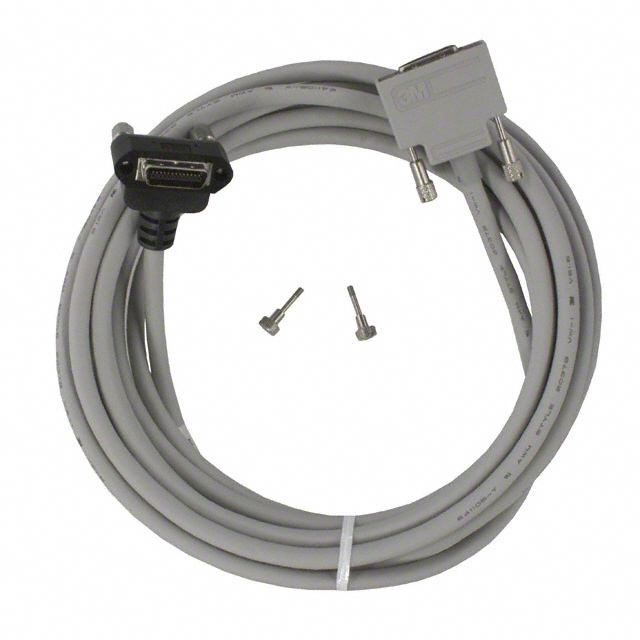

COMPUTER CABLE, MINI D RIBBON RIGHT ANGLE 26 POSITION PLUG

Search across all available documentation for this part.

Active

COMPUTER CABLE, MINI D RIBBON RIGHT ANGLE 26 POSITION PLUG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	14H26-SZ3M-500-03C	14H26 Series

Cable Type	Round, Gray	Round, Beige, Round, Black, Round, Gray
Configuration	Centronics 26 pos Male to Male, Right Angle	Centronics 26 pos Male to Male, Right Angle
Length	-	2 m
Length	-	6.56 ft
Length	-	7.01 m
Length	-	23 ft
Shielding	Shielded	Shielded
Style	Bidirectional	Bidirectional

MDR CAMERA CABLE 26POS M-RA/M 5M

Part	Shielding	Cable Type	Configuration	Style	Length [x]	Length [x]	Length	Length
3M 14H26-SZLM-500-0LC	Shielded	Round, Beige	Centronics 26 pos Male to Male, Right Angle	Bidirectional
3M 14H26-SZLM-200-0LC	Shielded	Round, Beige	Centronics 26 pos Male to Male, Right Angle	Bidirectional	2 m	6.56 ft
3M 14H26-SZ3M-200-04C	Shielded	Round, Black	Centronics 26 pos Male to Male, Right Angle	Bidirectional	2 m	6.56 ft
3M 14H26-SZ3M-500-03C	Shielded	Round, Gray	Centronics 26 pos Male to Male, Right Angle	Bidirectional
3M 14H26-SZ3M-700-04C	Shielded	Round, Black	Centronics 26 pos Male to Male, Right Angle	Bidirectional			7.01 m	23 ft
3M 14H26-SZ3M-200-03C	Shielded	Round, Gray	Centronics 26 pos Male to Male, Right Angle	Bidirectional	2 m	6.56 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Centronics 26 pos Male to Male, Right Angle Assembly 16.40' (5.00m) Round, Gray
