82760 877U500
ActiveBelden Inc.

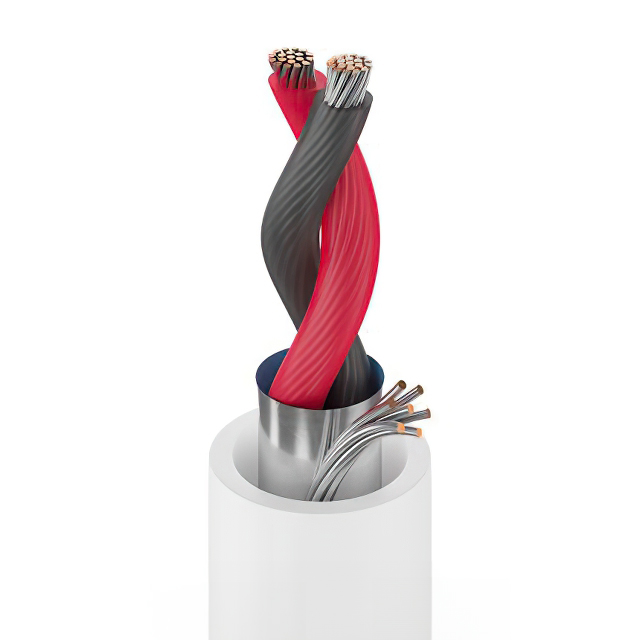

CABLE 2COND 18AWG NAT SHLD
Deep-Dive with AI
Search across all available documentation for this part.
82760 877U500
ActiveBelden Inc.
CABLE 2COND 18AWG NAT SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 82760 877U500 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.146 in |
| Jacket (Insulation) Diameter [diameter] | 3.71 mm |
| Jacket (Insulation) Material | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum |
| Jacket (Insulation) Thickness | 0.356 mm |
| Jacket (Insulation) Thickness | 0.014 in |
| Jacket Color | Natural |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 2 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 2.61 | |
| 1000 | $ 2.48 | |||
| 1500 | $ 2.41 | |||
| 2500 | $ 2.32 | |||
| 3500 | $ 2.26 | |||
Description
General part information
82760 Series
2 (1 Pair Twisted) Conductor Multi-Conductor Cable Natural 18 AWG Foil 500.0' (152.4m)
