0077908A7

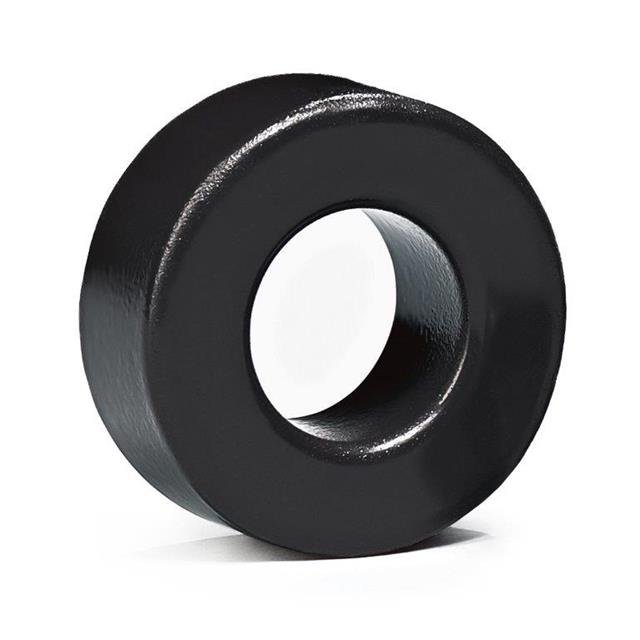

Coated Kool Mu Ferrite Core Toroid Type Length Width 3.063" (77.80mm) Diameter 0.625" (15.88mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | 0077908A7 |
|---|---|
| Core Type | Toroid |
| Diameter | 3.063 in |
| Effective Area (Ae) | 221 mm² |
| Effective Length (le) | 196 mm |
| Effective Magnetic Volume (Ve) | 43400 mm³ |
| Finish | Coated |
| Gap | Ungapped |
| Height | 0.625 in |
| Inductance Factor (Al) | 37 nH |
| Initial Permeability (µi) | 26 |
| Material | Kool Mu |
| Tolerance | 8 % |
