HARTING

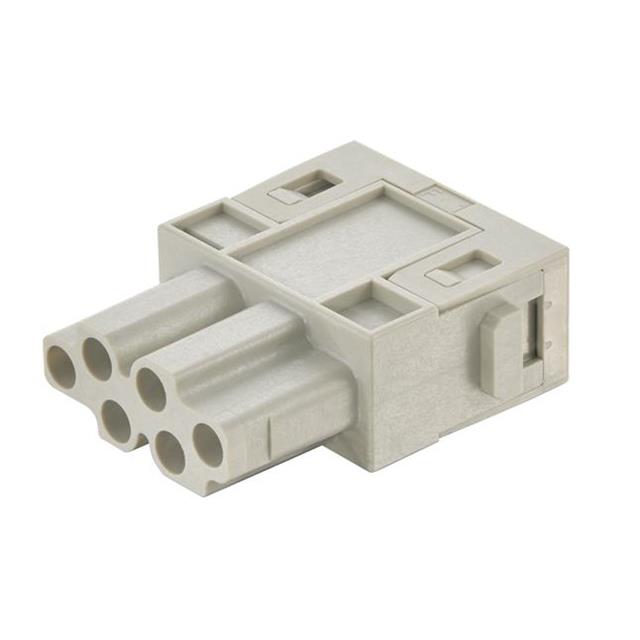

HEAVY DUTY CONNECTOR, HAN E SERIES, MODULE, 6 CONTACTS, RECEPTACLE, PUSH IN SOCKET

Find alt
09140065101

09140065101

Active
HARTING

HEAVY DUTY CONNECTOR, HAN E SERIES, MODULE, 6 CONTACTS, RECEPTACLE, PUSH IN SOCKET

Find alt

Description

General part information

09140065101

Female Module Gray 6 Position Crimp

Technical Specifications

Parameters and characteristics for this part

Specification09140065101
ColorGray
Connector TypeModule
Current Rating16 A
GenderFemale
Housing MaterialPC, Polycarbonate
Material Flammability RatingUL94 V-0
Number of Positions6
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Termination StyleCrimp
Voltage Rating500 V
