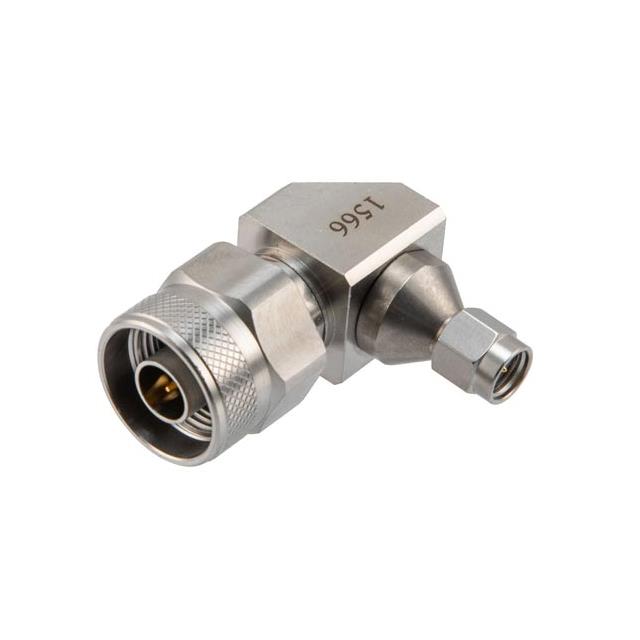

PE91566
ActivePasternack
SMA MALE TO N MALE MITER RIGHT A
PE91566
ActivePasternack
SMA MALE TO N MALE MITER RIGHT A
Description
General part information
PE91566
Adapter Coaxial Connector SMA Plug, Male Pin To N Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE91566 |
|---|---|
| Adapter Series | SMA to N |
| Adapter Type | Plug to Plug |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, SMA Plug |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | N Plug |
| Dielectric Material | Polyphenylene Oxide (PPO) |
| Fastening Type | Threaded |
| Frequency - Max | 18 GHz |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Style | Right Angle |
