Description
General part information

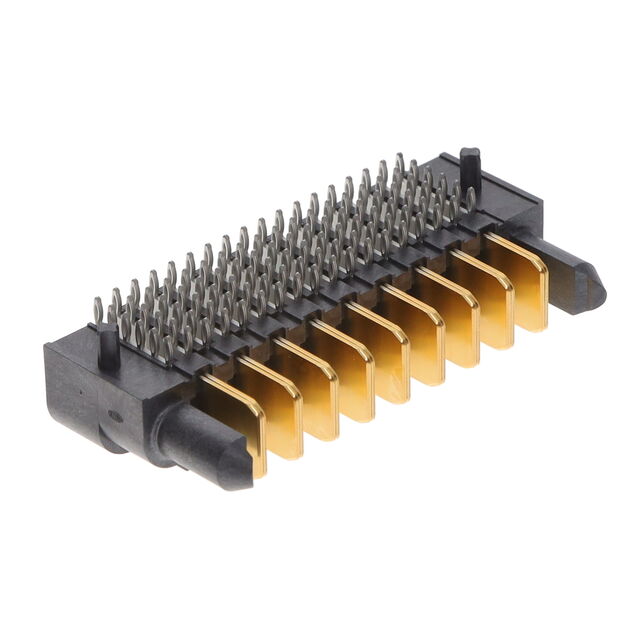

2195620009
9 Position Plug, Male Blades Connector Press-Fit Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 2195620009 |
|---|---|
| Color | Black |
| Connector Type | Plug, Male Blades |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Copper Alloy |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Material - Insulation | LCP, Liquid Crystal Polymer |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Termination | Press-Fit |
