31-031.006

Active

EAO

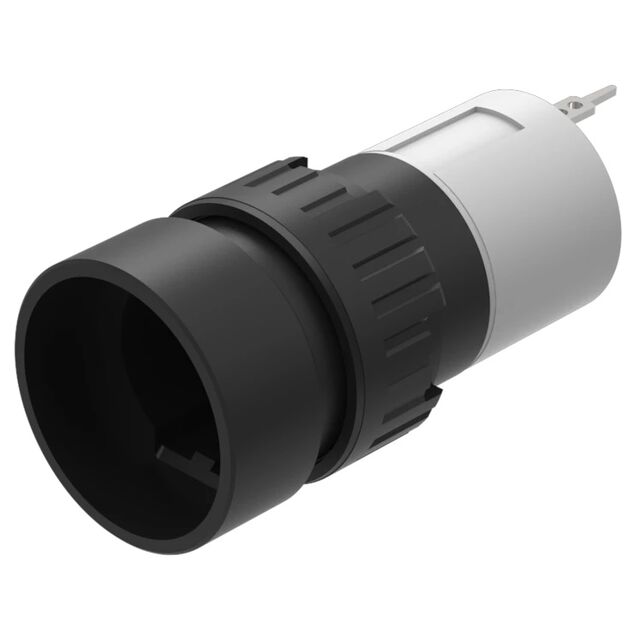

INDUSTRIAL PANEL MOUNT INDICATORS / SWITCH INDICATORS LENS RNDTPT YELLOW

Search across all available documentation for this part.

Active

EAO

INDUSTRIAL PANEL MOUNT INDICATORS / SWITCH INDICATORS LENS RNDTPT YELLOW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	31-031.006	31 Series

Accessory Type	-	Knurled Nut
Actuator Marking	-	No Marking
Actuator Type	-	Rectangular, Button (Not Included)
Circuit	-	DPST-NO/NC
Color	-	Gray
Current Rating (Amps)	-	5 - 100 mA
For Use With/Related Products	-	31 Series
Illumination	-	Illuminated, Non-Illuminated
Ingress Protection	IP40	IP40
Lens Size [diameter]	18 mm	18 mm
Mechanical Life	-	2000000 - 5000000 Cycles
Mounting Type	-	Snap Fit, Panel Mount, Front
Operating Temperature	-	55 °C
Operating Temperature	-	-25 °C
Panel Cutout Dimensions	0.64 in	0.64 in
Panel Cutout Dimensions	16.2 mm	16.2 mm
Panel Cutout Dimensions	-	16 mm
Panel Cutout Shape	Round	Round
Shape	-	Rectangular
Size	-	15.3 mm
Size	-	21.5 mm
Switch Function	-	Off-Mom, On-Mom
Switch Type	-	Pushbutton
Termination Style	Quick Connect	PC Pin, Solder Lug, Quick Connect
Type	LED	Standard, LED
Voltage Rating - AC	-	42 - 250 V
Voltage Rating - DC	-	42 V

Pushbutton Switches LENS TPT WTLT YLW

Part	Shape	Mounting Type	For Use With/Related Products	Switch Type	Size [x]	Size [y]	Illumination	Color	Circuit	Current Rating (Amps)	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Switch Function	Mechanical Life	Voltage Rating - DC	Actuator Type	Type	Termination Style	Panel Cutout Dimensions [diameter]	Ingress Protection	Accessory Type	Panel Cutout Shape	Lens Size [diameter]	Panel Cutout Dimensions	Panel Cutout Dimensions
EAO 31-901.3	Rectangular	Snap Fit	31 Series	Pushbutton	15.3 mm	21.5 mm	Illuminated
EAO 31-902.8	Rectangular	Snap Fit	31 Series	Pushbutton	15.3 mm	21.5 mm	Non-Illuminated	Gray
EAO 31-423.036		Panel Mount, Front							DPST-NO/NC	100 mA	No Marking	55 °C	-25 °C	42 V	Off-Mom, On-Mom	5000000 Cycles	42 V	Rectangular, Button (Not Included)	Standard	PC Pin, Solder Lug	16 mm	IP40
EAO 31-991			31 Series																				Knurled Nut
EAO 31-031.006																			LED	Quick Connect		IP40		Round	18 mm	0.64 in	16.2 mm
EAO 31-706.029		Panel Mount, Front							DPST-NO/NC	5 A	No Marking	55 °C	-25 °C	250 V	Off-Mom, On-Mom	2000000 Cycles		Rectangular, Button (Not Included)	Standard	Solder Lug	16 mm	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switches LENS TPT WTLT YLW
