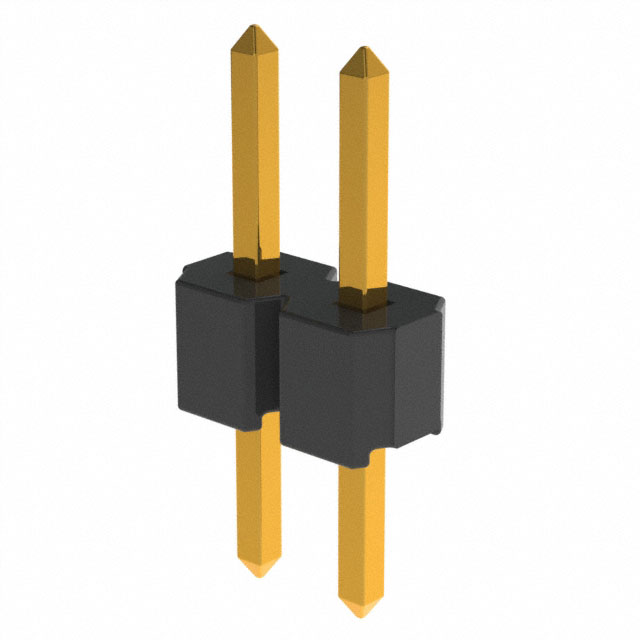

NRPN012PAEN-RC
UnknownSullins Connector Solutions
CONN HEADER VERT 2POS
Deep-Dive with AI
Search across all available documentation for this part.
NRPN012PAEN-RC
UnknownSullins Connector Solutions
CONN HEADER VERT 2POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NRPN012PAEN-RC |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 0.141 in |
| Contact Length - Mating | 3.6 mm |
| Contact Length - Post | 2.79 mm |
| Contact Length - Post [x] | 0.11 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.079 in |
| Insulation Height | 2 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 8.38 mm |
| Overall Contact Length | 0.33 in |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
| Voltage Rating | 150 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.12 | |
| 10 | $ 0.10 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
Description
General part information
NRPN012 Series
Connector Header Through Hole 2 position
Documents
Technical documentation and resources
No documents available
